- High-concerned chemical: None
- Battery Included: No
- Model Number: 433mhz RF curtain switch modulemodule,Blind Switch,Garage Door switch
- is_customized: Yes
- Brand Name: tedeligo
- Voltage: 110-240V
- Wattage: 16A
- Origin: Mainland China
- Certification: CE,RoHS
- Product Type: 433Mhz RF Curtain swith,module,Blind Switch,Garage Door switch
- Size (WxDxH): 40*40*22mm
- Working Voltage: AC 110-240V 50/60Hz
- Remote Distance: up to 70m( theoretical distance)
- Material: Plastic
- Color: White
- Apply to: curtains,motors,roller shutters,blinds.
- Application scenarios: Family, Farm, Factory, Office, Supermarkets and so on
- 1: Curtain Switch
- 2: Shutter Controllers
- 3: curtain Module
- 4: Wireless Remote
- 5: Roller Shutter Blinds Motor
Pay attention before placing an order!
– This is RF remote control only, no wifi, no app, no voice control.
– This RF remote has privitate protocol inside, it can't work with other brands switch, so don't buy it to work with other switches.

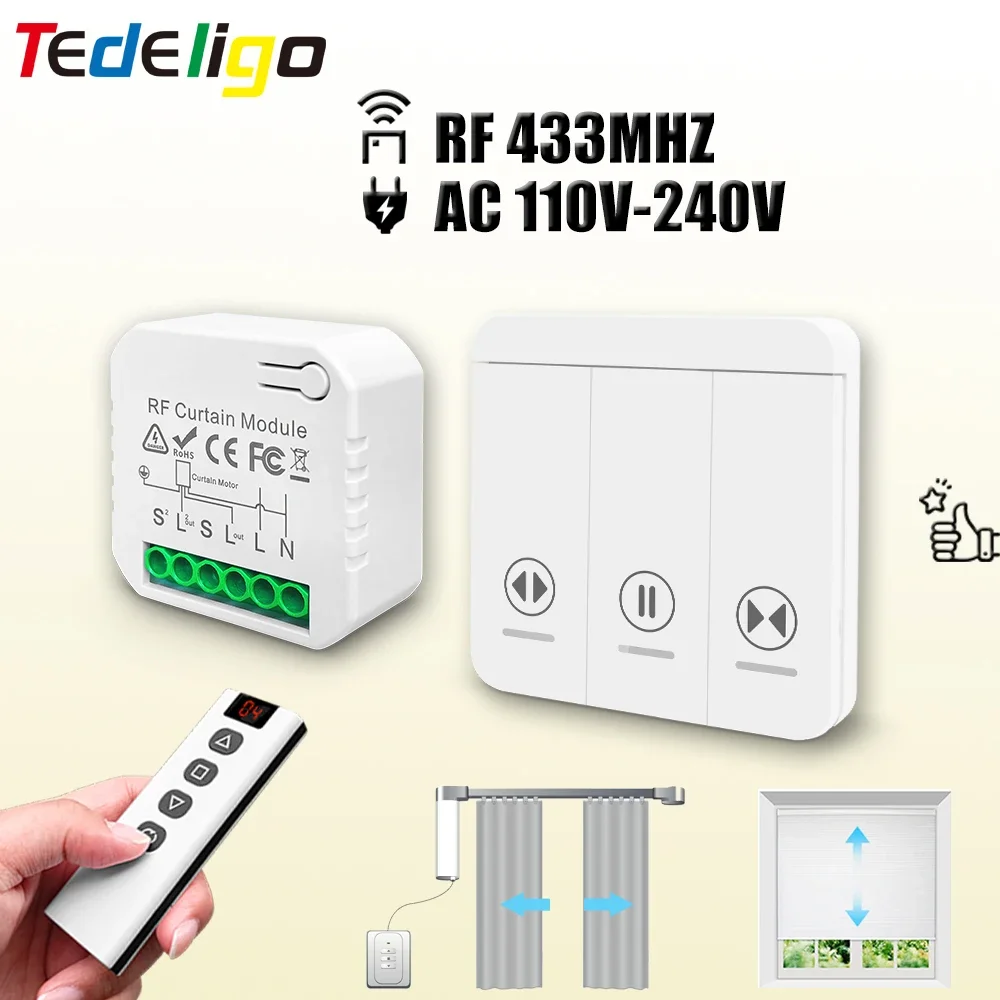

RF Curtain switch parameter Â
Input voltage: Â 100-240VAC, 50/60Hz
Max Load : 16A
RFÂ Frequency:433.92Mhz
Wiring: Â Neutral Wire, L1, L2,S1,S2
Standby Consumption: below 0.5W
Plastic Material: Fireproof ABS
Certification: CE, EMC, RED, RoHS
Size :Â Â 40mm*40mm*23mm
Wide application: drawing room,shower room,bedroom,house lighting room,kids room.
433mhz RF wireless switch
working frequency:433MHZ
Working way: wireless control
Coding way: EV1527 learning codeÂ
Modulation: ASK
Working temperature:-10"C~+70*C Â
Battery:27A 12V(include)
Size: 86*86* 15mm
433mhz RF Remote Control(5CH)
Product type:Remote control
Battery:23A 12V(include)
Size:110mm*38mm*15mm
Coding way: EV1527 learning codeÂ
Remote control distance:50m(in the open area)
Base:include
Features:
1.Two different wiring methods
–with original wall switch;without original wall switch
2.Wireless Remote Control or wireless switch with easy pairing mode
–this curtain switch module is RF433 frequency, so it Can be controlled with remote switch.
3.Long Range Wireless Control
–No need mobile phone control, Realize 70 meters long-distance control of curtains,electric projection cloth, Garage Door to open or close.
4.Convenient
–The curtain module is used in some occasions that require remote control, such as home, office, meeting room, etc. It can free people's hands, improve the efficiency of life and work.
5.Flexible application without interference

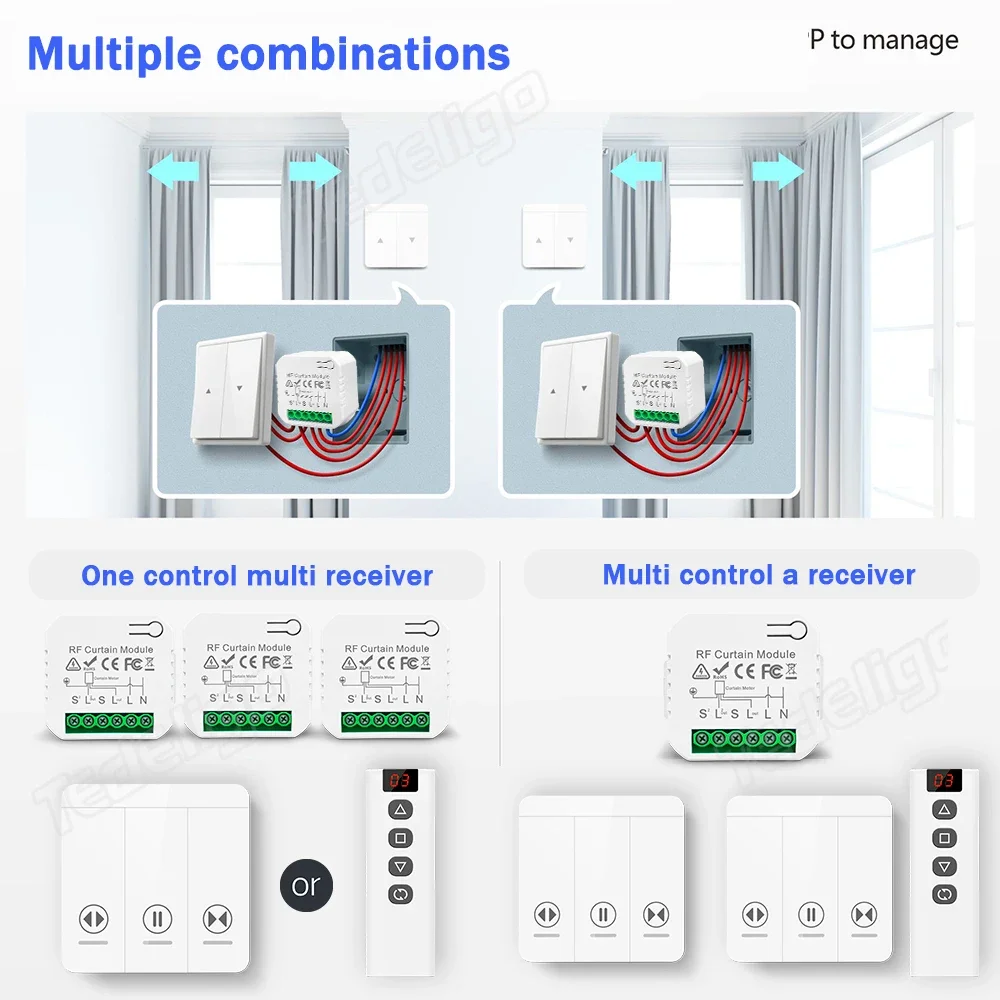

—One device support one remote control or more,our products support flexible pairing,No interference for multiple use in the same room
433MHZ wireless switch signals
How to get the signals
Step 1: Press the learning button(on the Receiver) 1 times . Wait for 3 seconds;
Step 2: Press the button on the remote control. Wait for 3 seconds. Succeed.
How to clear the signals
Only one step :Press the learning button(on the Receiver)Â 8Â times. Wait for 3 seconds;
*The same is true for matching wireless panel switches.
