- High-concerned chemical: None
- Battery Included: Yes
- Model Number: tuya smart zigbee curtain motor switch module
- is_customized: Yes
- Brand Name: tedeligo
- Voltage: 110-240V
- Wattage: 16A
- Origin: Mainland China
- Certification: CE,RoHS
- Product Type: 433Mhz RF Curtain swith,module,Blind Switch,Garage Door switch
- Size (WxDxH): 40*40*22mm
- Working Voltage: AC 110-240V 50/60Hz
- Remote Distance: up to 70m( theoretical distance)
- Material: Plastic
- Color: White
- Apply to: curtains,motors,roller shutters,blinds.
- Application scenarios: Family, Farm, Factory, Office, Supermarkets and so on
- Feature1:: Stable signle,not interfere
- Feature2:: 2 Way control
- Feature3:: Multiple combinations,Multi control


– This is RF remote control only, no wifi, no app, no voice control.
– This RF remote has privitate protocol inside, it can't work with other brands switch, so don't buy it to work with other switches.

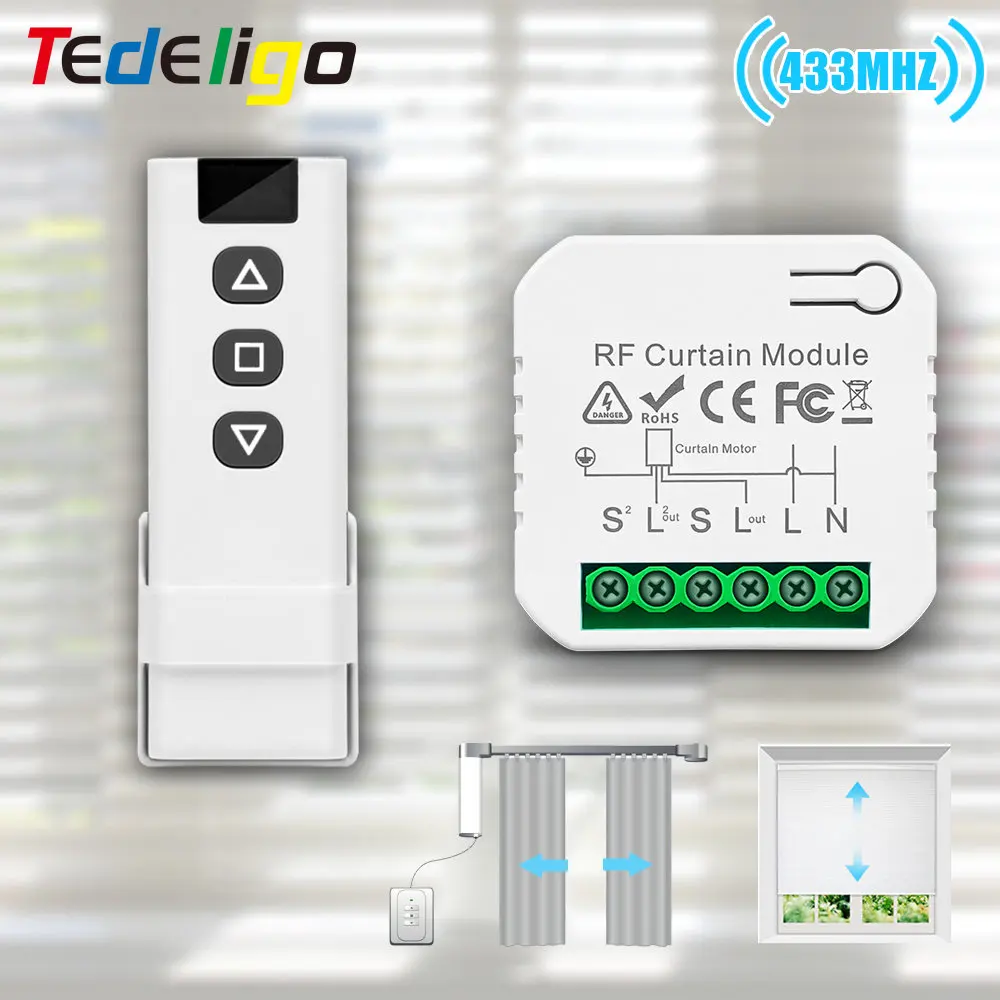

Curtain switch parameter Â
Input voltage: Â 100-240VAC, 50/60Hz
Max Load : 16A
RFÂ Frequency:433.92Mhz
Wiring: Â Neutral Wire, L1, L2,S1,S2
Standby Consumption: below 0.5W
Plastic Material: Fireproof ABS
Certification: CE, EMC, RED, RoHS
Size :Â Â 40mm*40mm*23mm

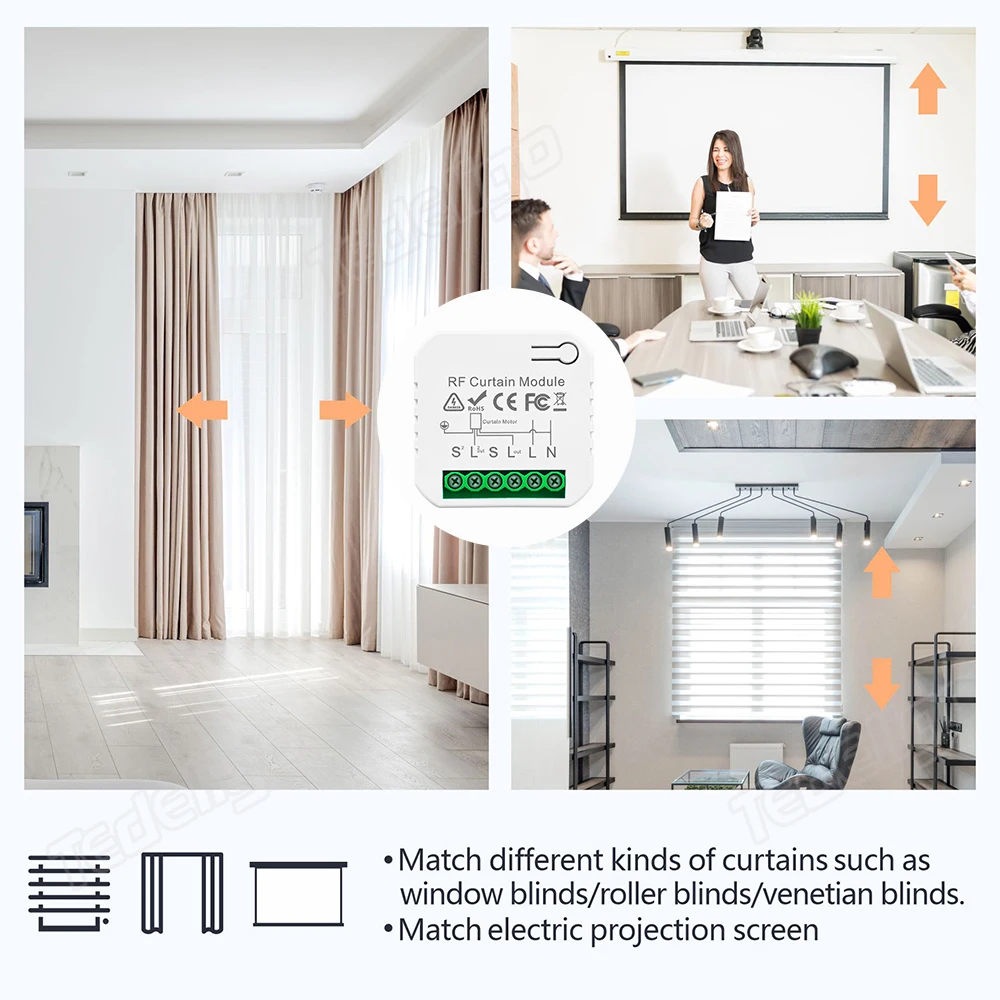

Wide application: drawing room,shower room,bedroom,house lighting room,kids room.
wireless remote controlÂ
–Size:110*38.1*15mm
–Remote distance : up to 70 meters (theoretical distance)
–Battery  :  23A 12V(  NO Battery include )
–Screw: Â Include
–Base: Â Include
Features:

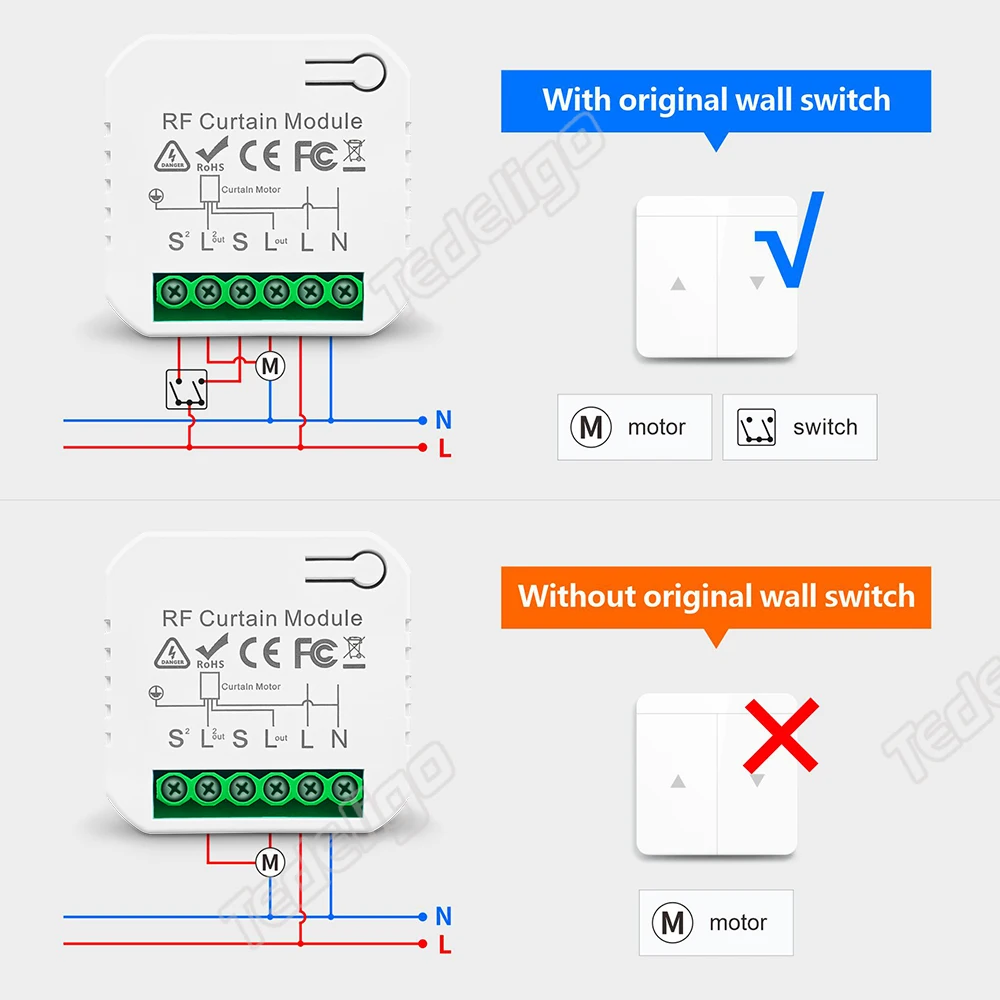

1.Two different wiring methods
–with original wall switch;without original wall switch
2.Wireless Remote Control with easy pairing mode
–this curtain switch module is RF433 frequency, so it Can be controlled with remote switch.

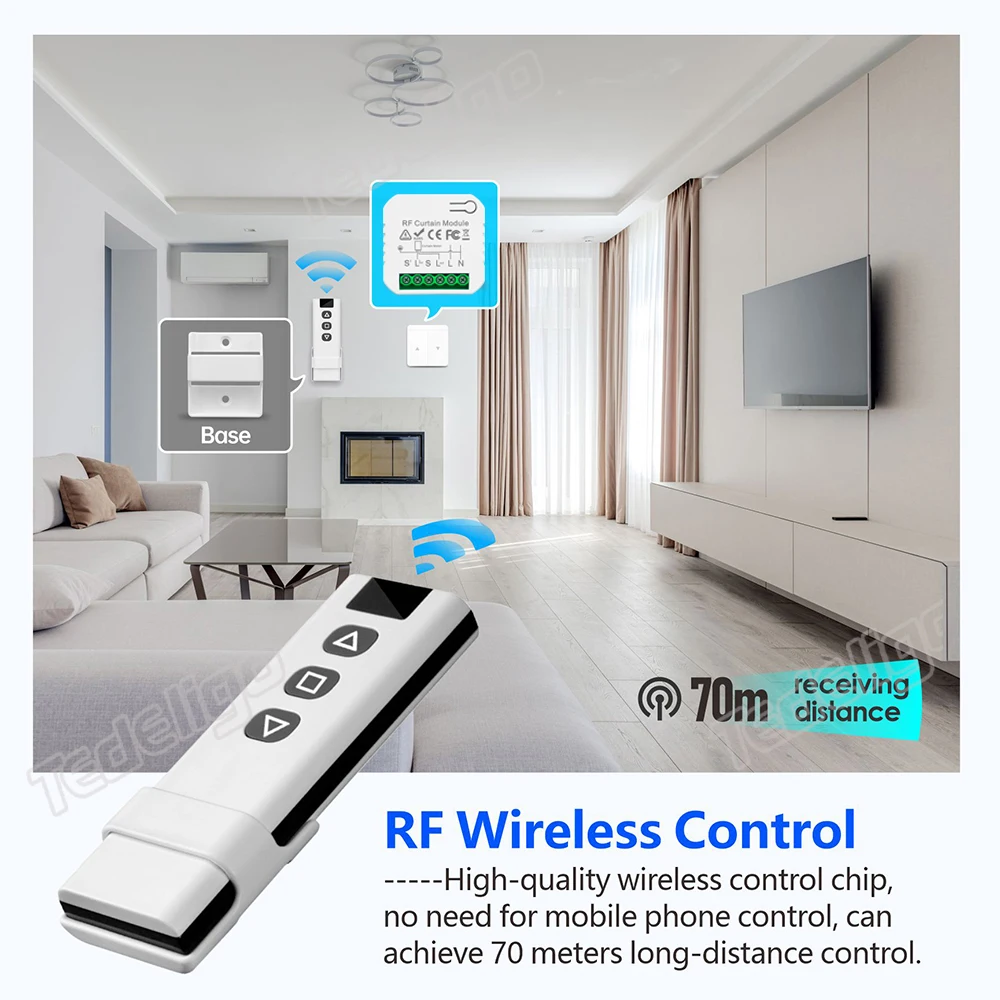

3.Long Range Wireless Control
–No need mobile phone control, Realize 70 meters long-distance control of curtains,electric projection cloth, Garage Door to open or close.
4.Convenient
–The curtain module is used in some occasions that require remote control, such as home, office, meeting room, etc. It can free people's hands, improve the efficiency of life and work.

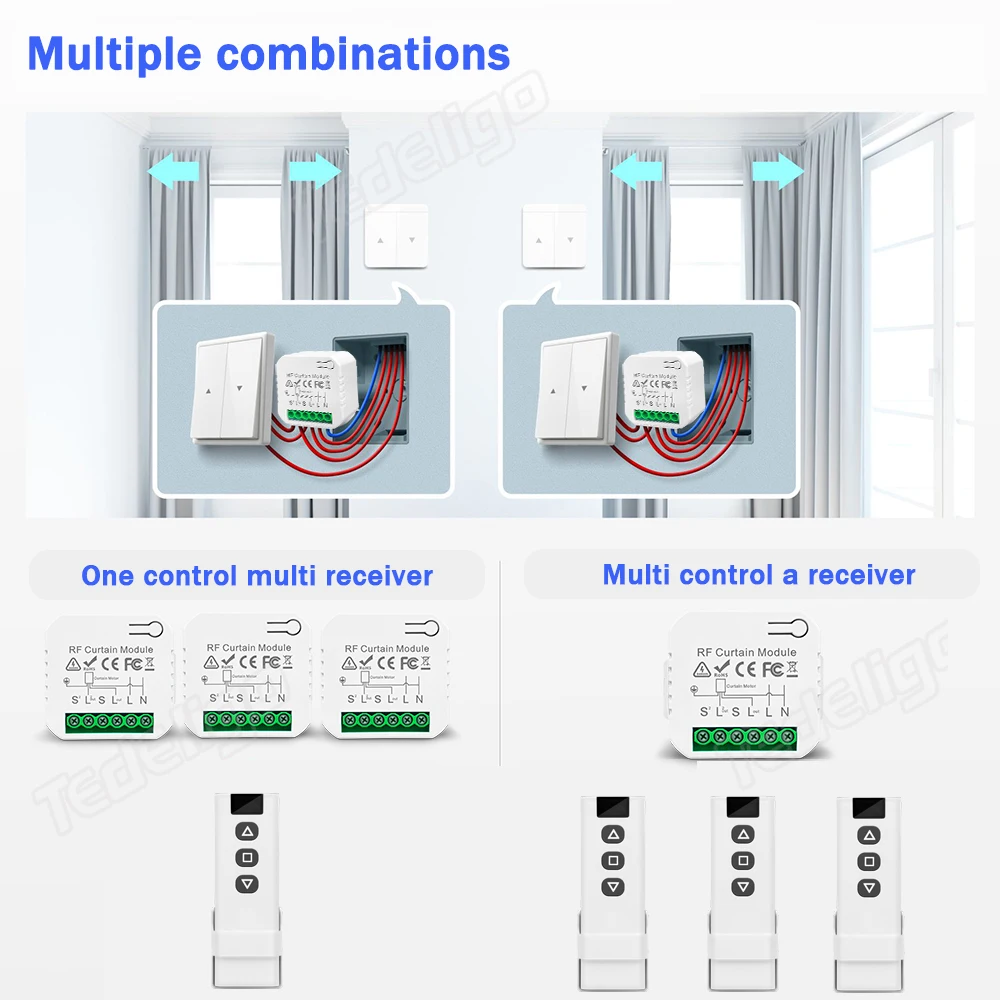

5.Flexible application without interference
—One device support one remote control or more,our products support flexible pairing,No interference for multiple use in the same room





433MHZ wireless switchsignals
How to get the signals
Step 1: Press the learning button(on the Receiver) 1 times . Wait for 3 seconds;
Step 2: Press the button on the remote control. Wait for 3 seconds. Succeed.
How to clear the signals
Only one step :Press the learning button(on the Receiver)Â 8Â times. Wait for 3 seconds;
