- Net Weight: > 50Kg
- Connection: Bluetooth-Compatible
- Application: Home Energy
- High-concerned chemical: None
- Display screen: Yes
- Nominal Capacity: 100Ah
- Certification: CE
- Size: 680*450*280mm
- Model Number: 48100-MPPT
- Type: LiFePO4
- Origin: Mainland China
- Replacement Battery: No
- Set Type: Batteries Only
- Brand Name: AMZVISION
- THDI: <3%
- Rated grid voltage/Grid voltage range: 230Vac/176-270Vac
- Rated grid frequency/Grid frequency range: 50Hz(45-54Hz)/60Hz(55-65Hz)
- Type of grid connection: AC Charging connector
- Max.PV Input Power: 6KW
- MPPT Voltage Rang: 120-450V
- Max.PV Voltage: 500V
- Max.PV Charging Current: Current 30A
- PV Efficiency: <99.2%

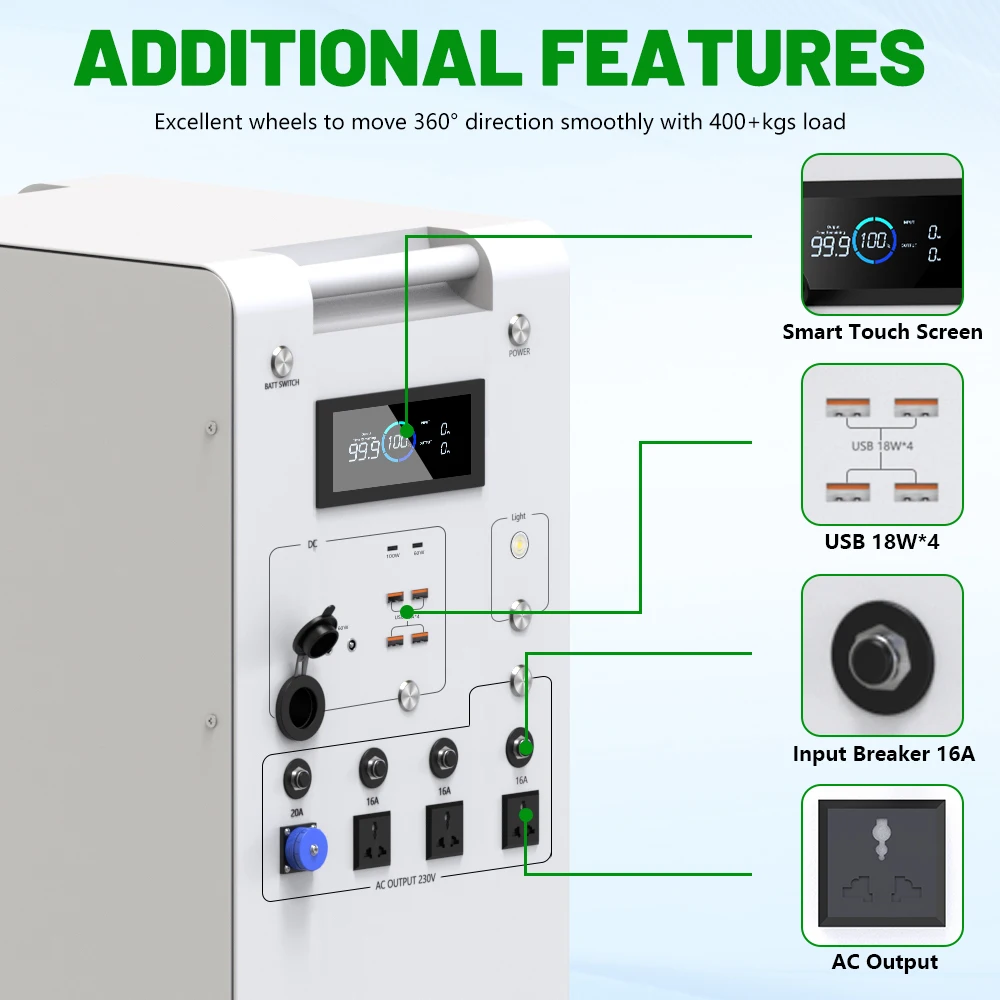

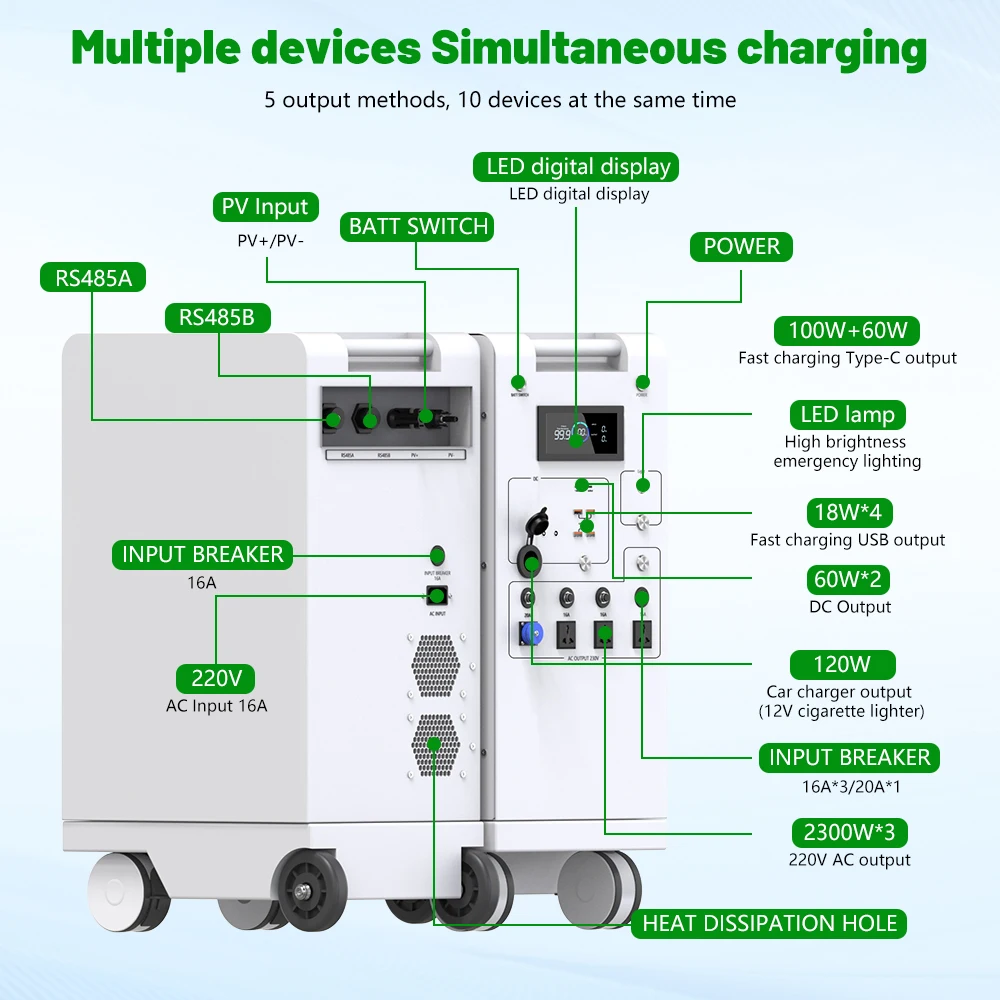

- Output Interface: USB18W*4,Type C 100W*1,Type C 60W*1

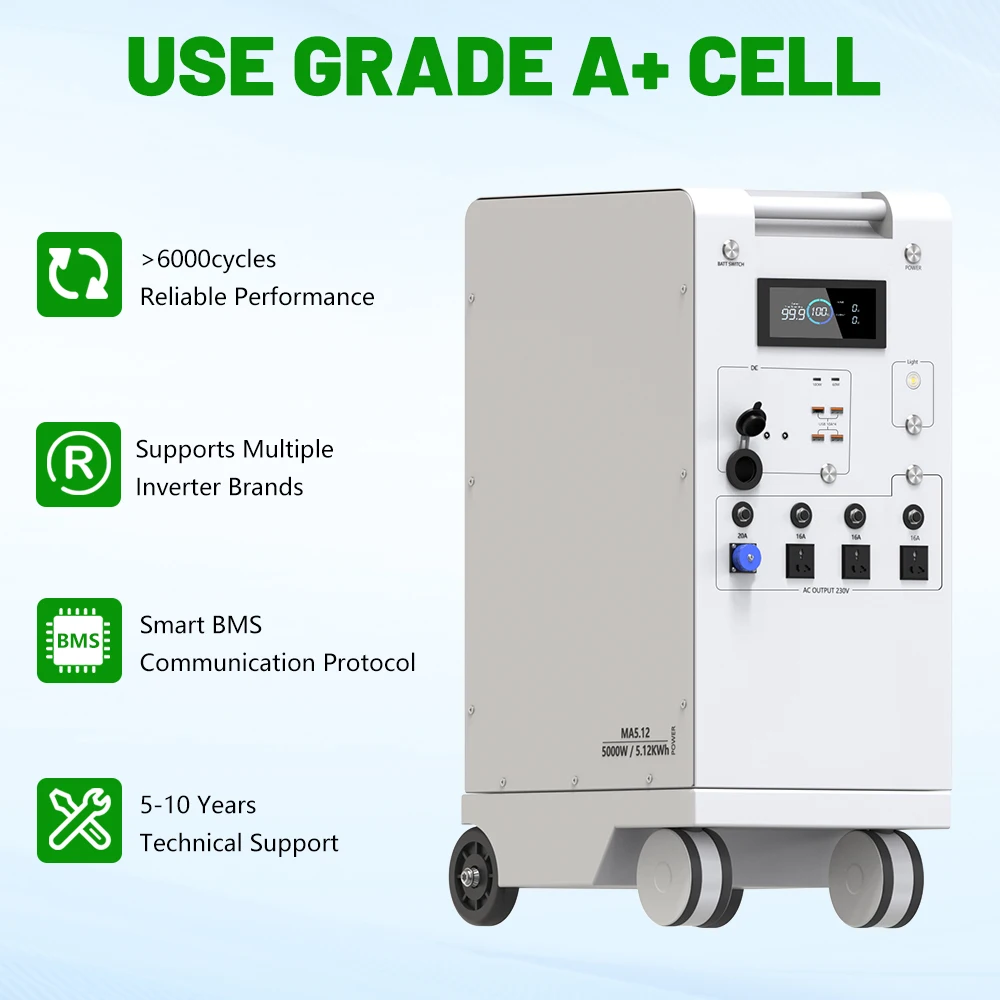

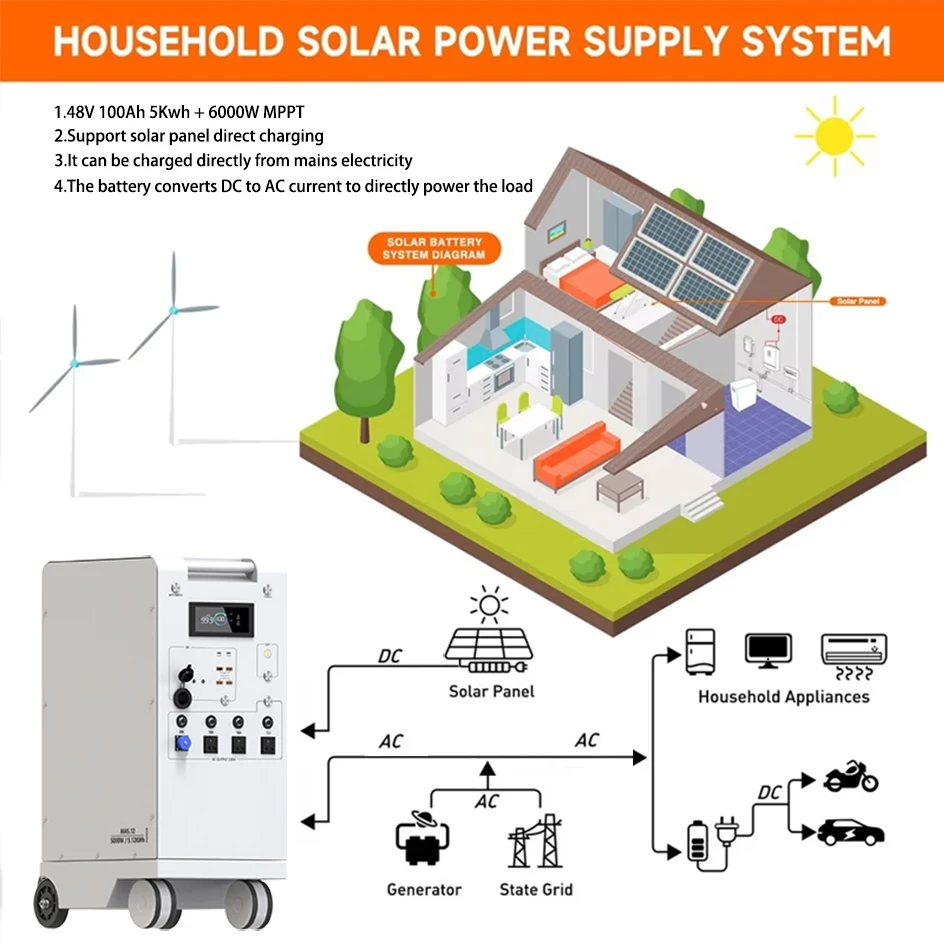

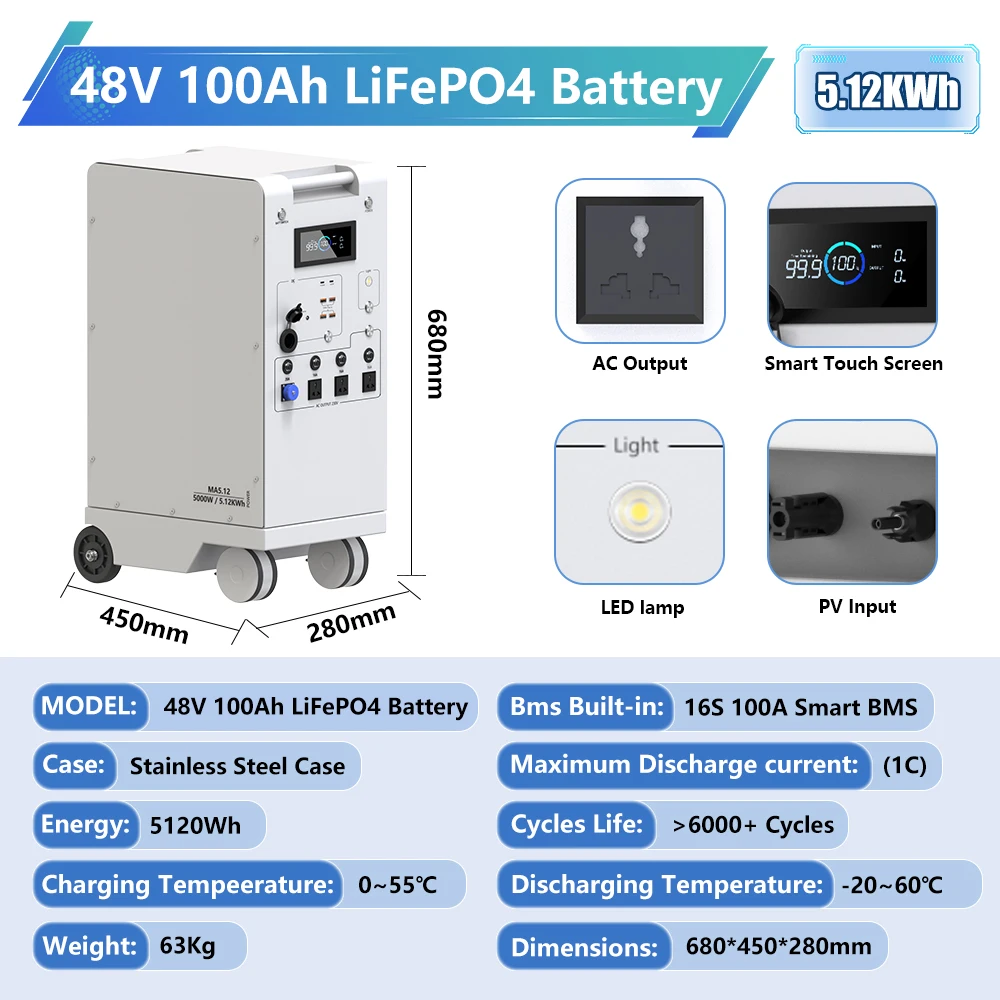

48V 100Ah 5Kwh LiFePO4 + 6000W MPPT

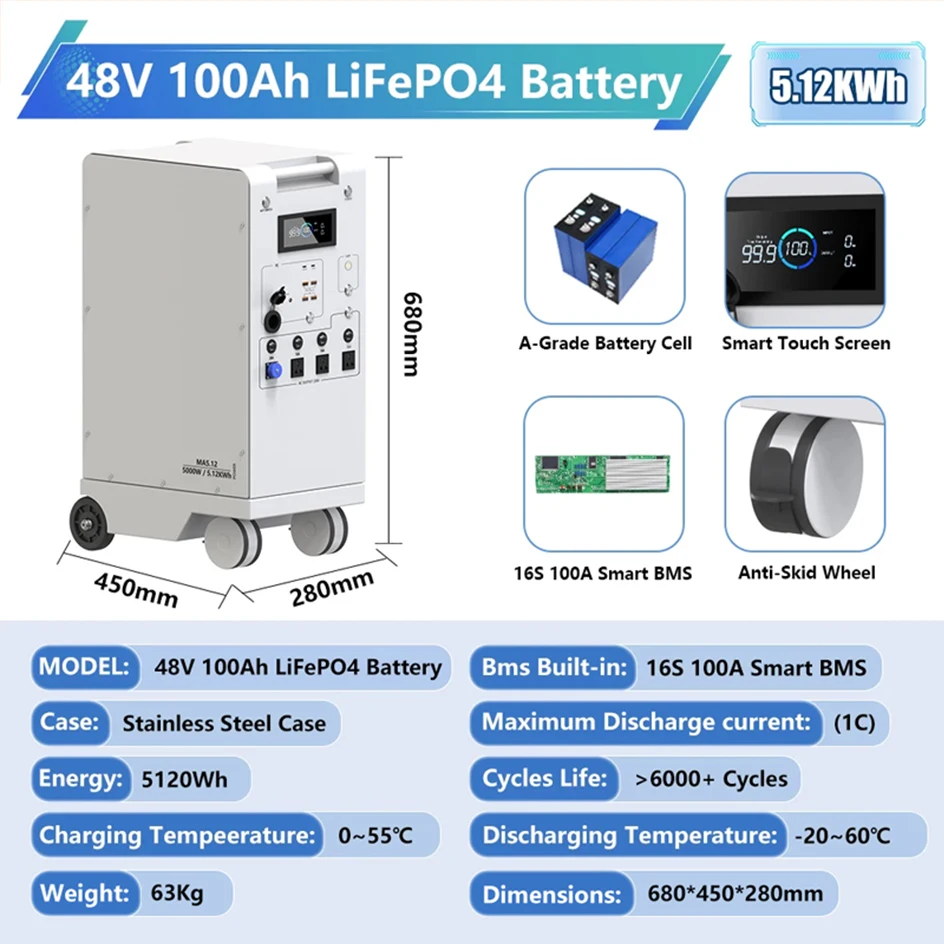

Nominal Voltage :Â 51.2V
Rate Capacity : 100Ah
Energy Power : 5120Wh
MPPT : 6000W
Parallel : Max 16 Parallel
Cycle Life : 6000+ Cycles

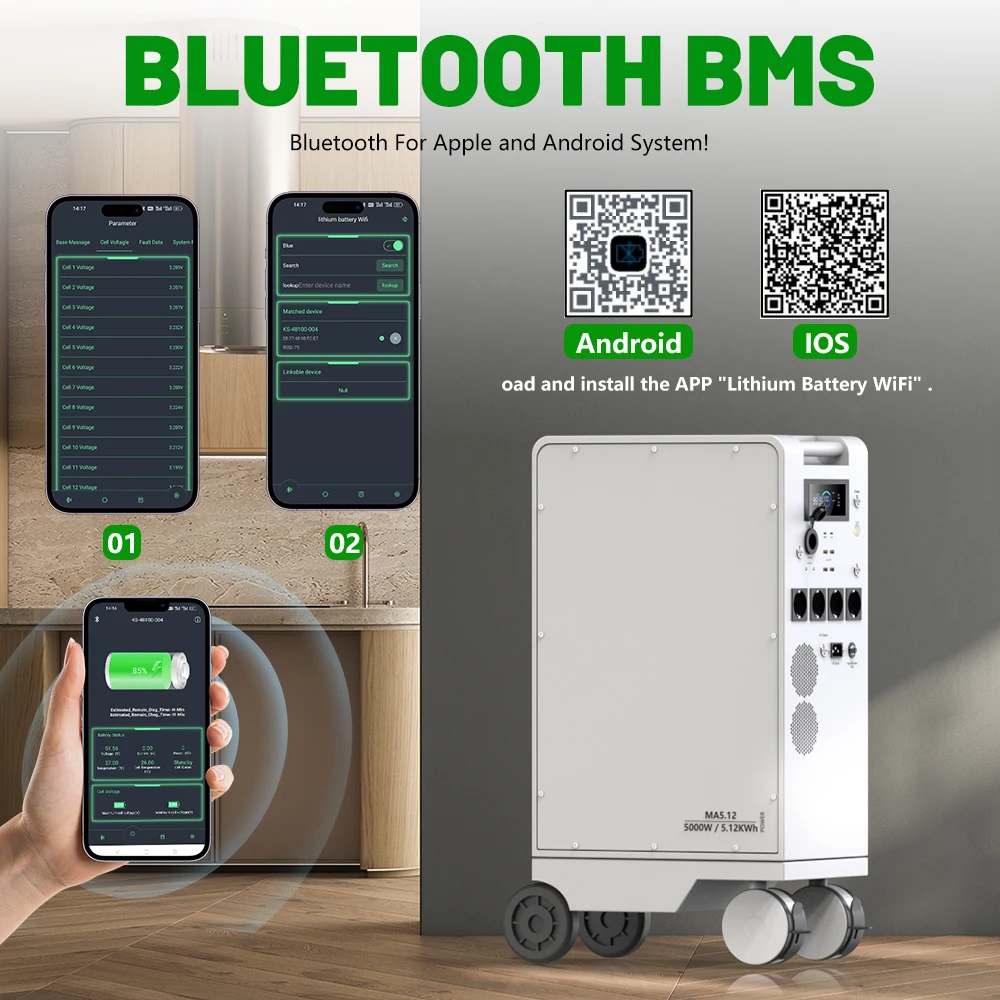

Communication Protocol: RS485/Bluetooth
Max Charge Voltage : 58.4V
Maximum Charging Current : 50A
Maximum Dicharge Current : 100A
Charging Temperature : 0~55°C
Discharging Temperature : -20~60°C
Dimensions(L*W*H) :Â 680*450*280mm
Studs : Quick Plug Terminal
Weight :Â 60KG
