- High-concerned chemical: None
- Rigid Solar Panel: Yes
- is_customized: Yes
- Number of Cells: 6

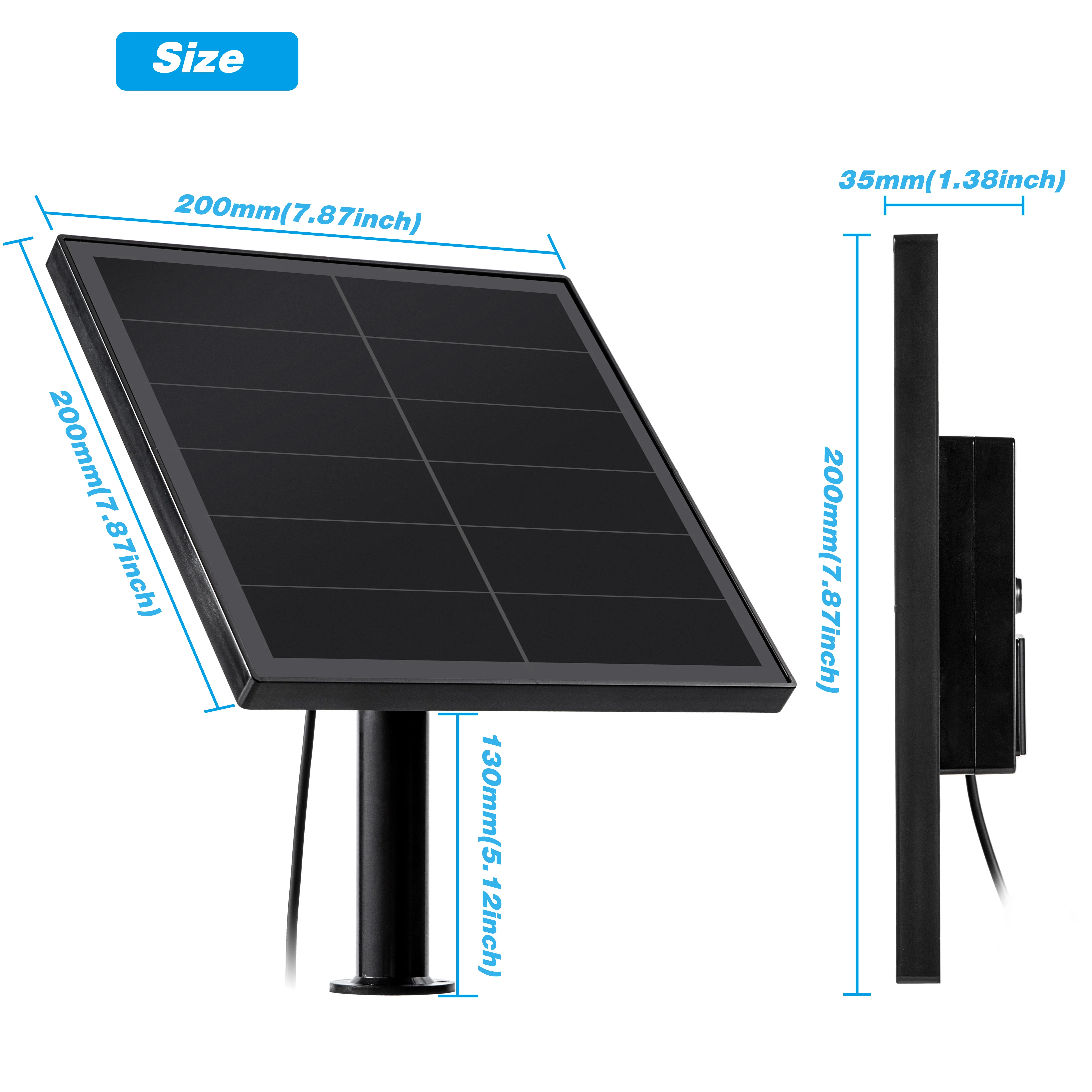

- Size: 200X200MM
- Material: Monocrystalline Silicon
- Model Number: U8-6B
- Nominal Capacity: 15600mah
- Foldable Solar Panel: No
- Flexible Solar Panel: No
- Number of Panels: 1
- Type: Solar Panel
- Brand Name: iXSolarleap
- Origin: Mainland China
- Max. Power: 8W
- Certification: CE,FCC

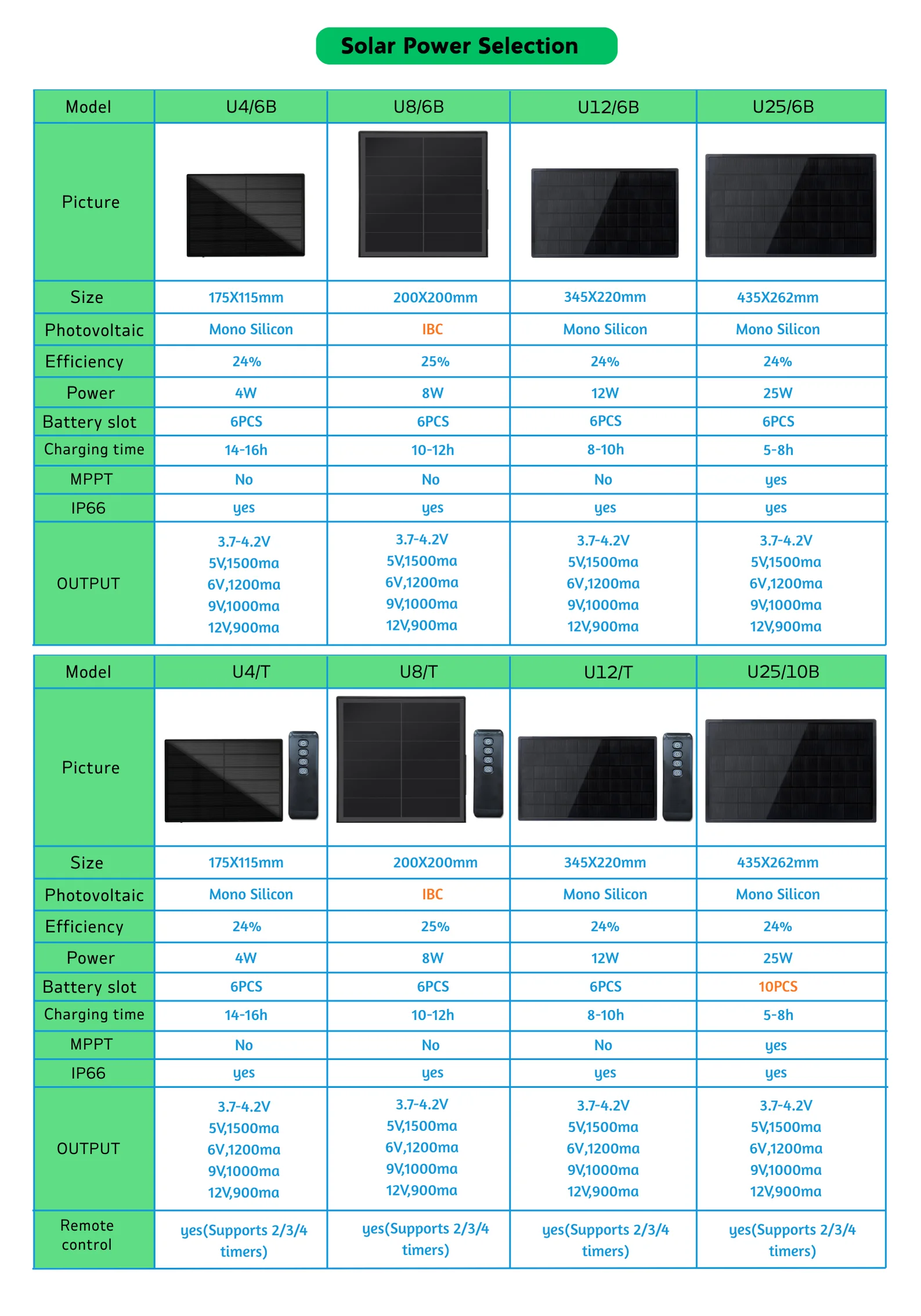

Solar Panel Series Quick Selection Guide
Please select the corresponding solar panel based on your needs.

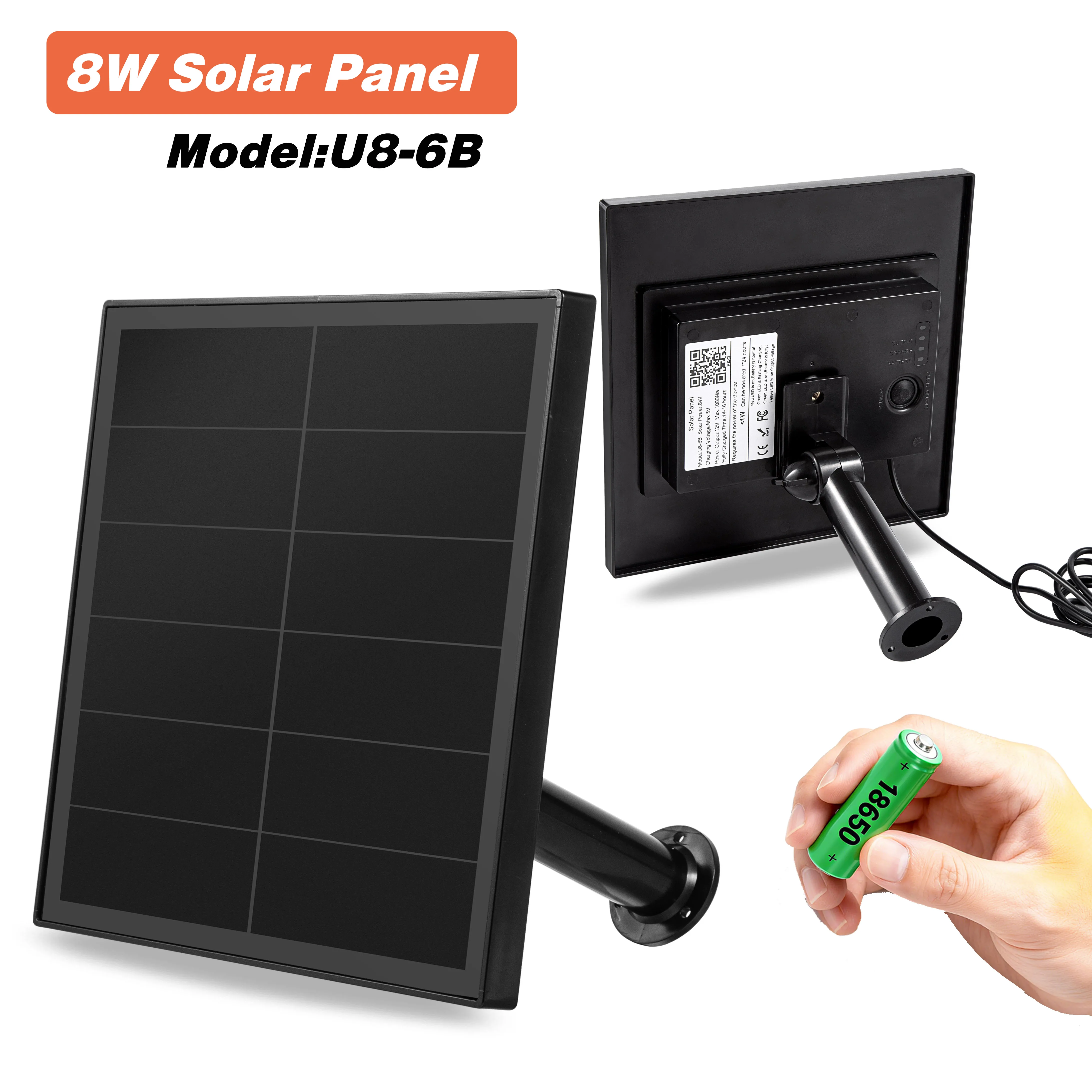

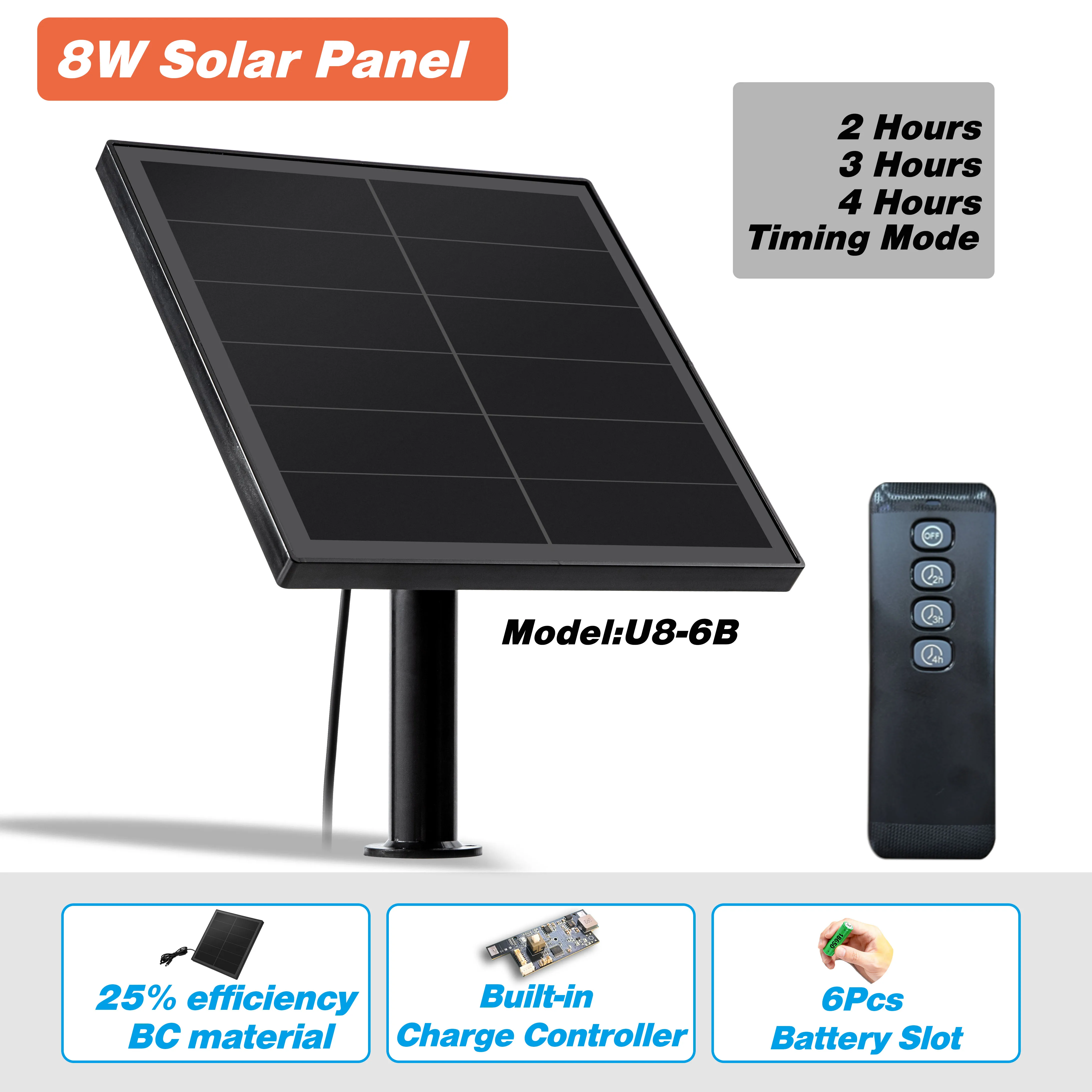

8W Solar Panel 3 In1 DC/Mirco USB/TypeC Output 12V Solar Cells Charger Built-in 18650 Battery For Outdoor security Camera IP66 Waterproof

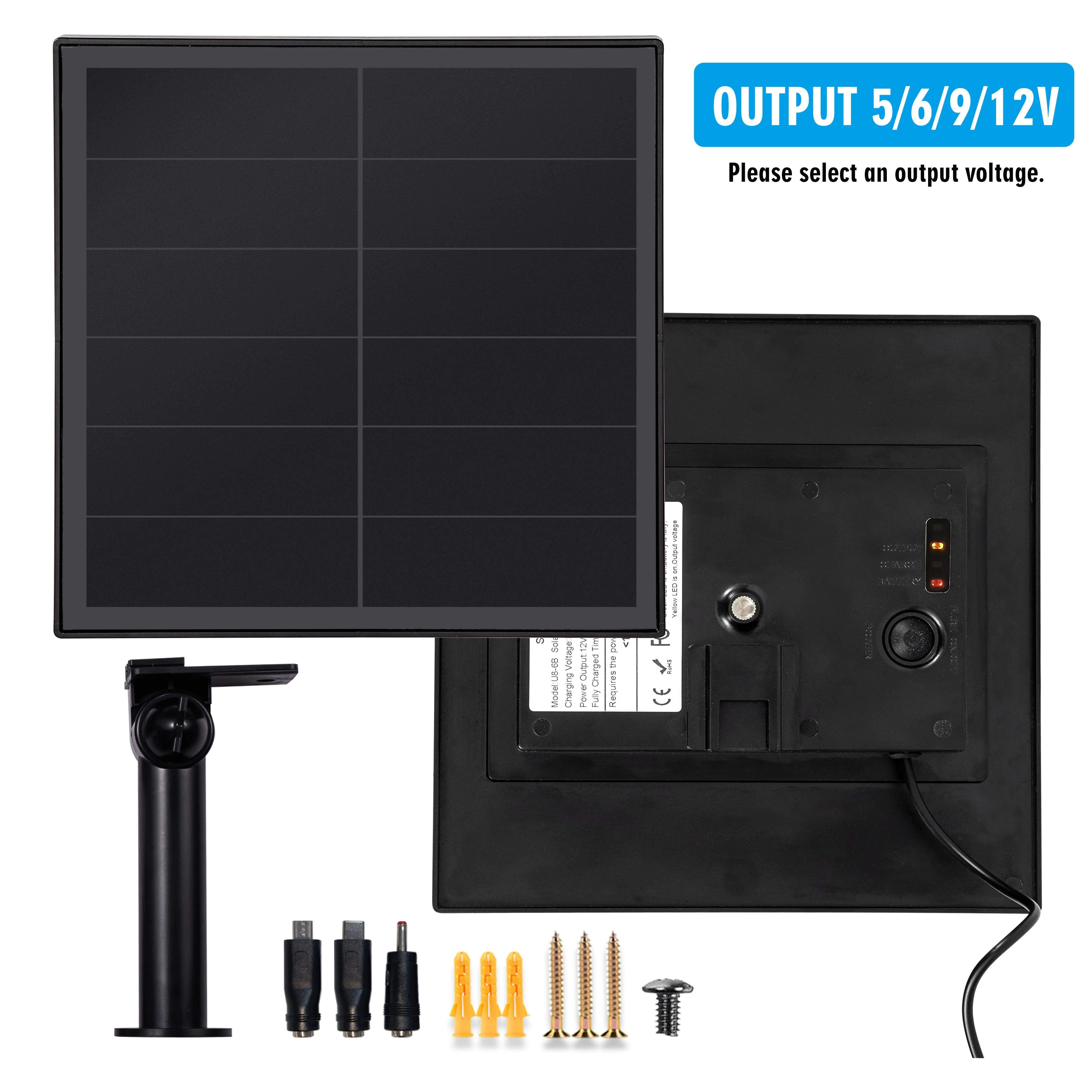

Option
Option 1: Output 5V, battery not included
Option 2: Output 6V, battery not included
Option 3: Output 9V, battery not included
Option 4: Output 12V, battery not included
NOTE

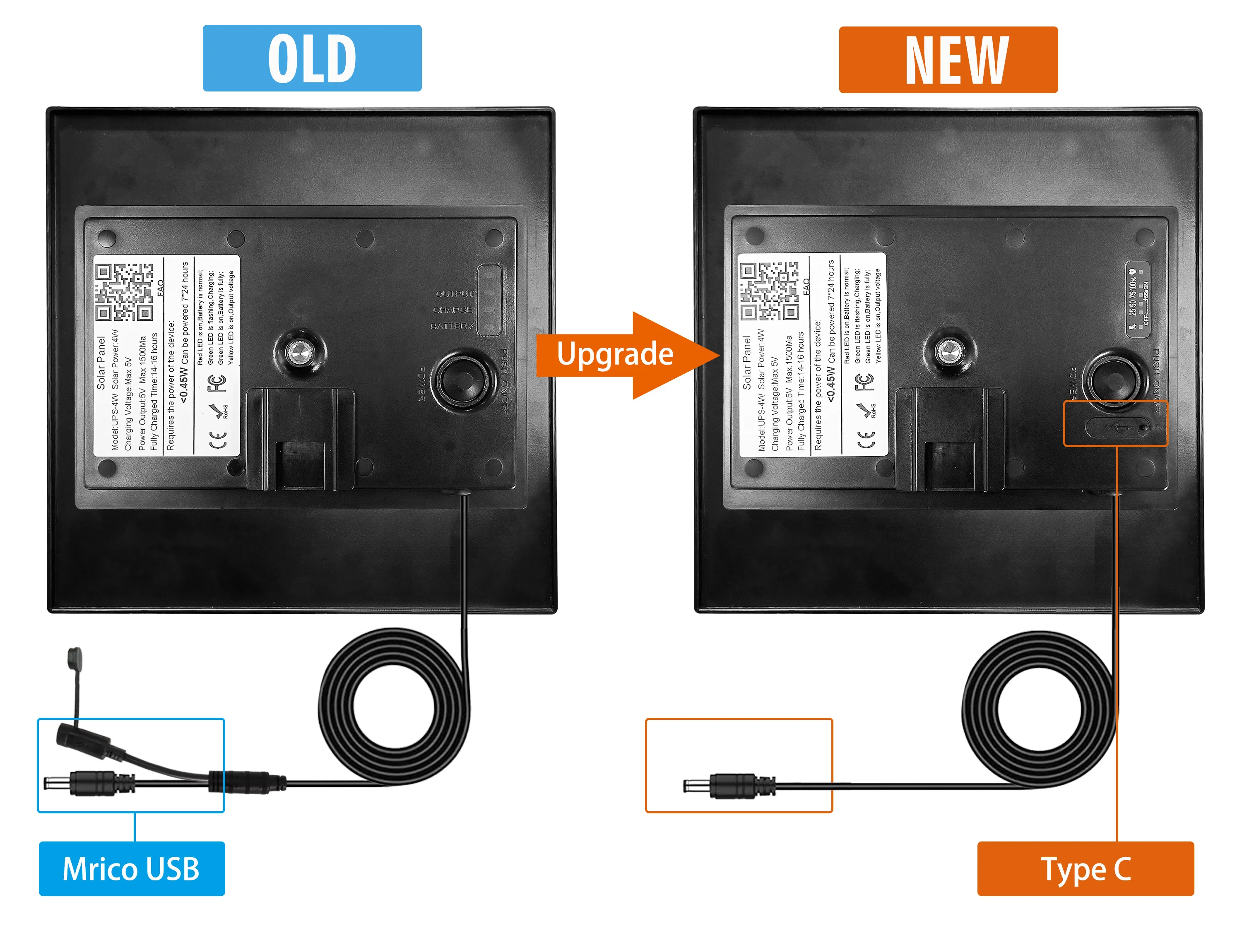

We have adjusted the position of the product's charging port, with everything else unchanged. You may receive different versions.

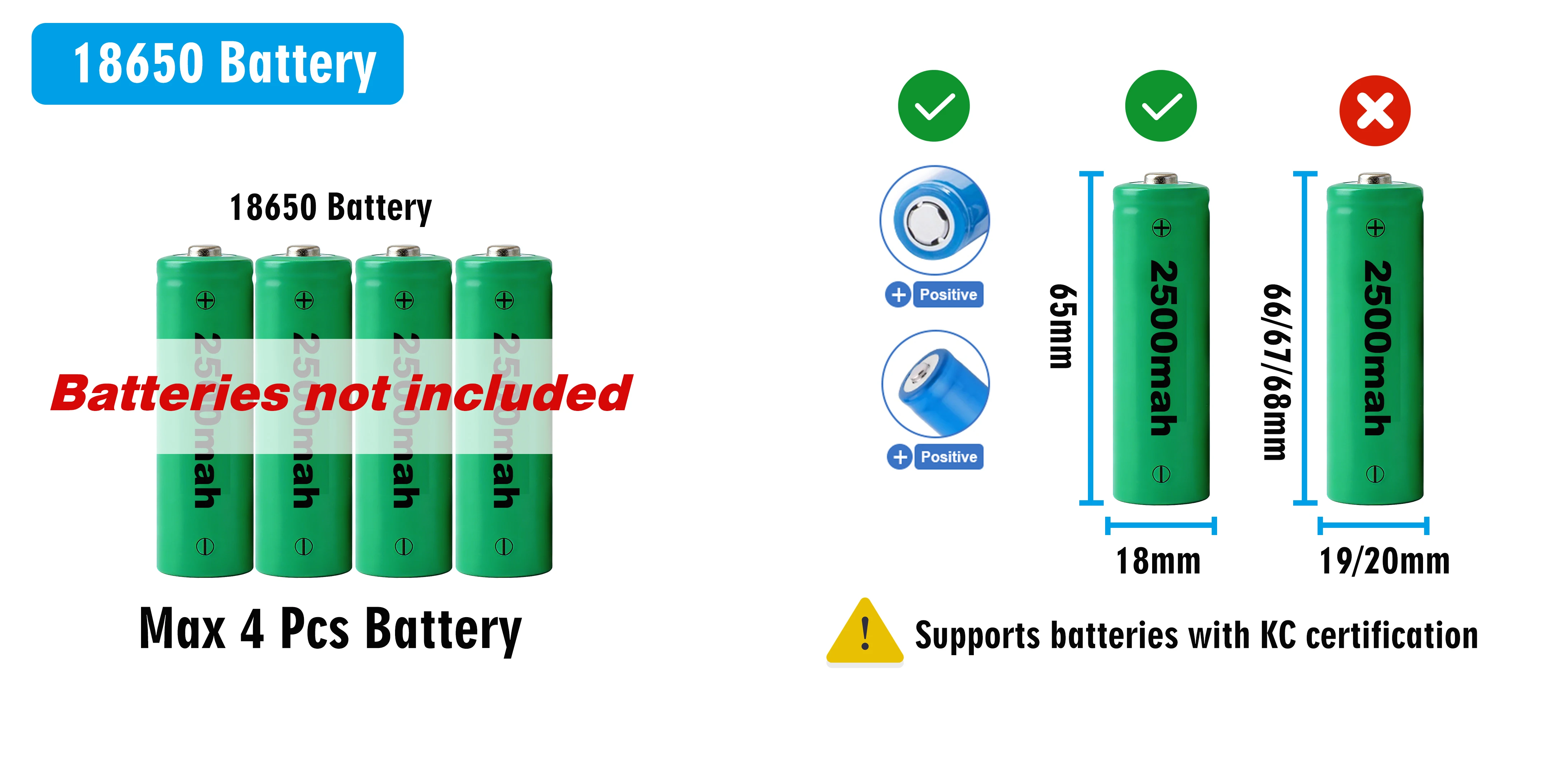

18650-type batteries
Please purchase 18650-type batteries. Up to four cells can be installed with no capacity restrictions, though we recommend a capacity of 2500mAh or higher. Note that standard 18650 batteries must be used; otherwise, installing four cells may not be possible.
This link does not include batteries; you will need to purchase and install them yourself.
Main Features:

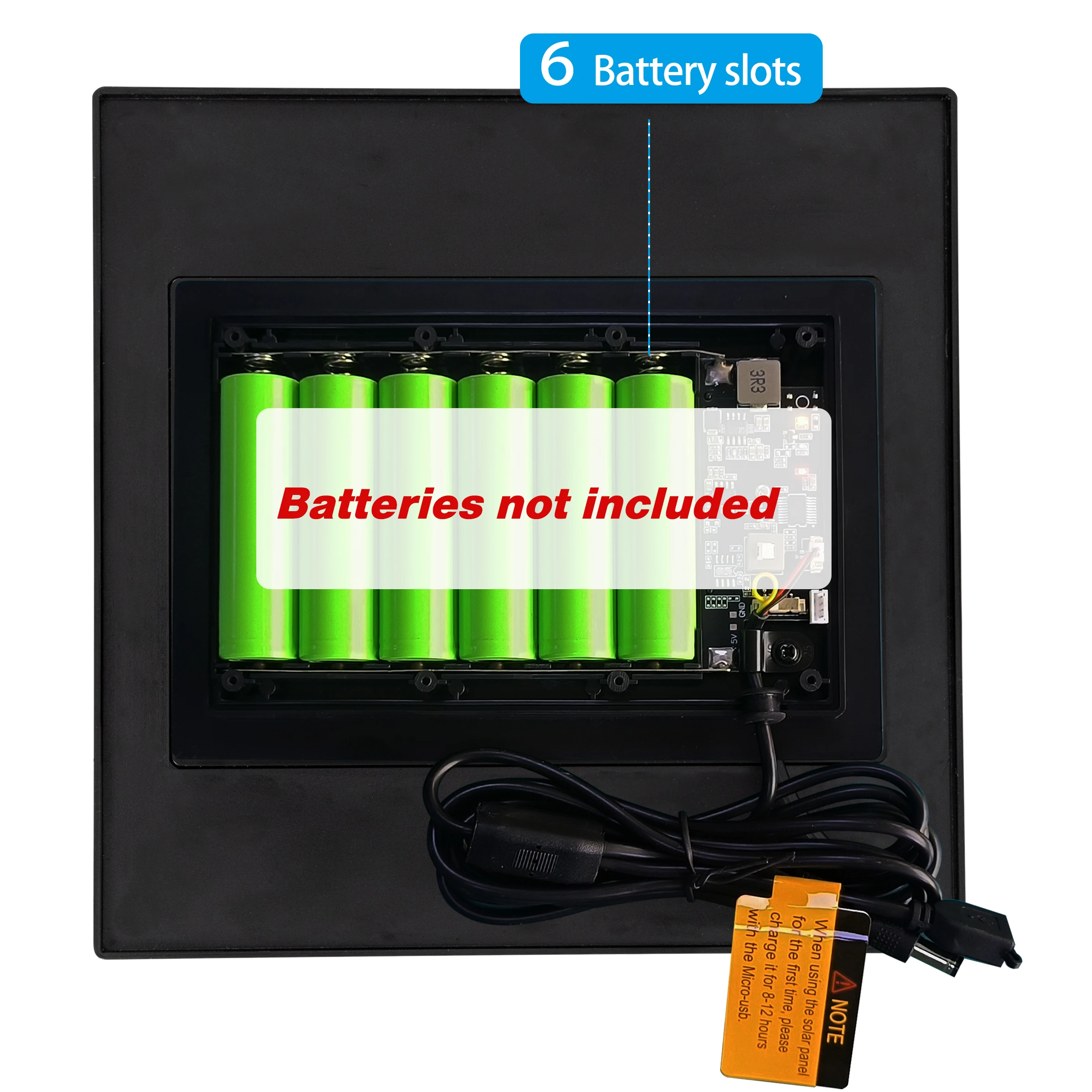

*【Batteries can be installed】There are 6 slots for 18650 batteries inside the solar panel, the slots are standard 18650 battery size, you can easily install the batteries.
*【Mcu Charge Management】Low power consumption MCU core processor, the whole panel charging and discharging for fine management, to ensure that the panel runs well.

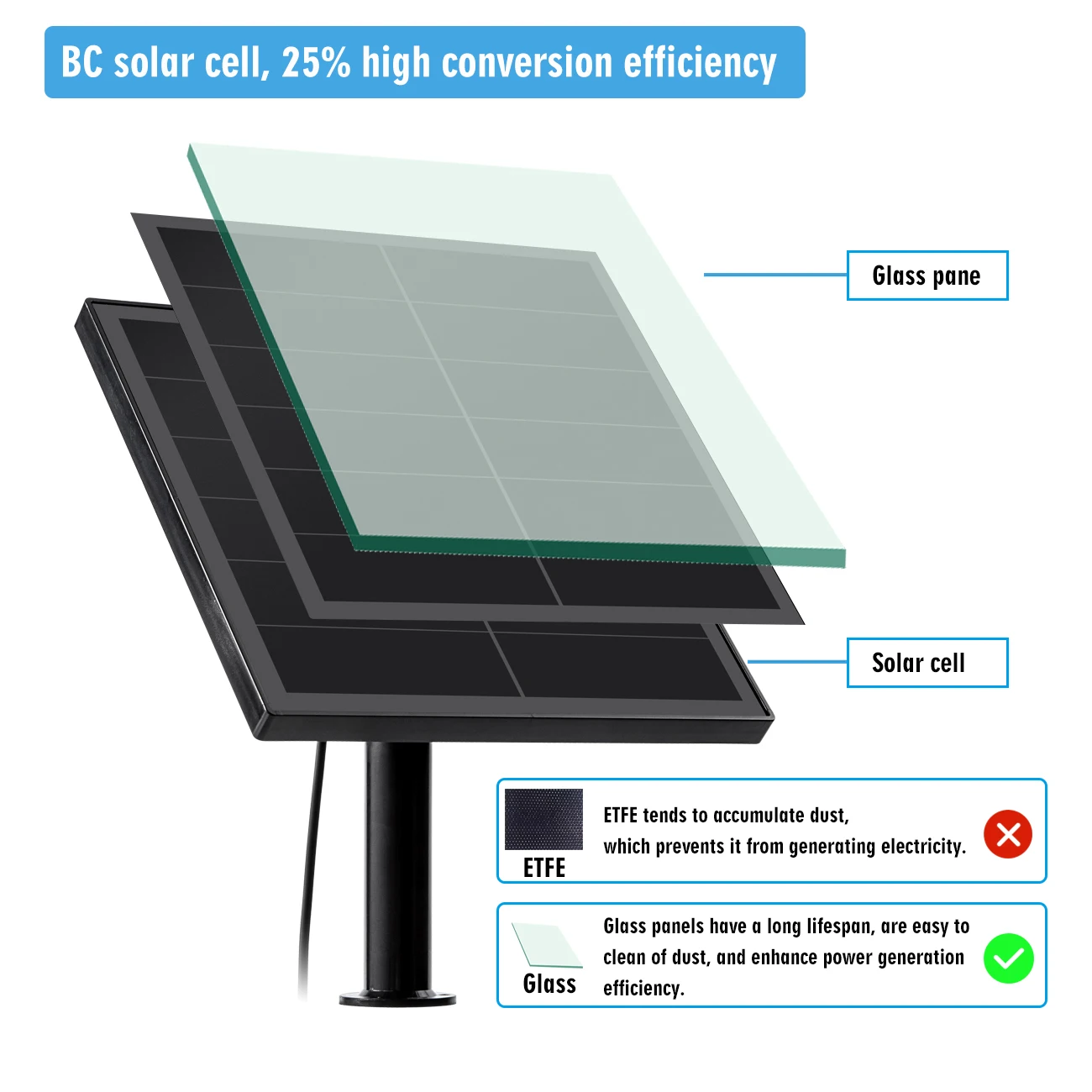

*【Monocrystalline silicon solar panel cells】Solar cells use monocrystalline silicon, which has the highest conversion efficiency of 23%, to improve the efficiency of converting sunlight into electricity.
*【Constant Current Voltage Regulator Circuit PCB】Built-in PCBA to output stable 5V voltage from the battery through constant current circuit to supply your device and keep him running well.
*【Solar & DC power input】The panel can be charged in two ways, you can charge him via sunlight or you can also charge the battery in the panel via a 12V1A power adapter.
*【Iindicator lamps】The back of the panel is designed with 3 status indicators, making it easy to understand the working status of the panel as well as troubleshooting.
*【Outdoor waterproof IP66】The panel is designed for outdoor use and is waterproof to IP66.
*【Overcharge and Overdischarge】The overcharge voltage is 4.25V and the overdischarge voltage is 2.8V, which protects your battery more safely and prolongs the life of the battery.
FAQ
Q: Is the battery included?
A: Panel has 6 battery slots, you can choose you need.
Q: Use environment temperature
A：-10°-50°
Q：How to choose a battery?
A：Supports all 18650 batteries.
Q：Is there a requirement for battery capacity?
A：No limitations, high capacity, long charging time.
Q：How are the panels installed?
A：Please install the panel in a location with greater than 5 hours/day of sunlight.
Device Power
Since the panel generates relatively little power, if it provides power for high-power devices, the rate at which the devices consume power is much greater than the rate at which the panel is charged.
If you need to work 7X24 hours, please keep your device power and working current less than the following reference values.
Device: power 0.45W
Applicable Devices
This solar panel can power hunting cameras, low-power cameras for up to 365 days. It can also charge cell phones, outdoor small power products.
Multiple styles of input and output connectors.

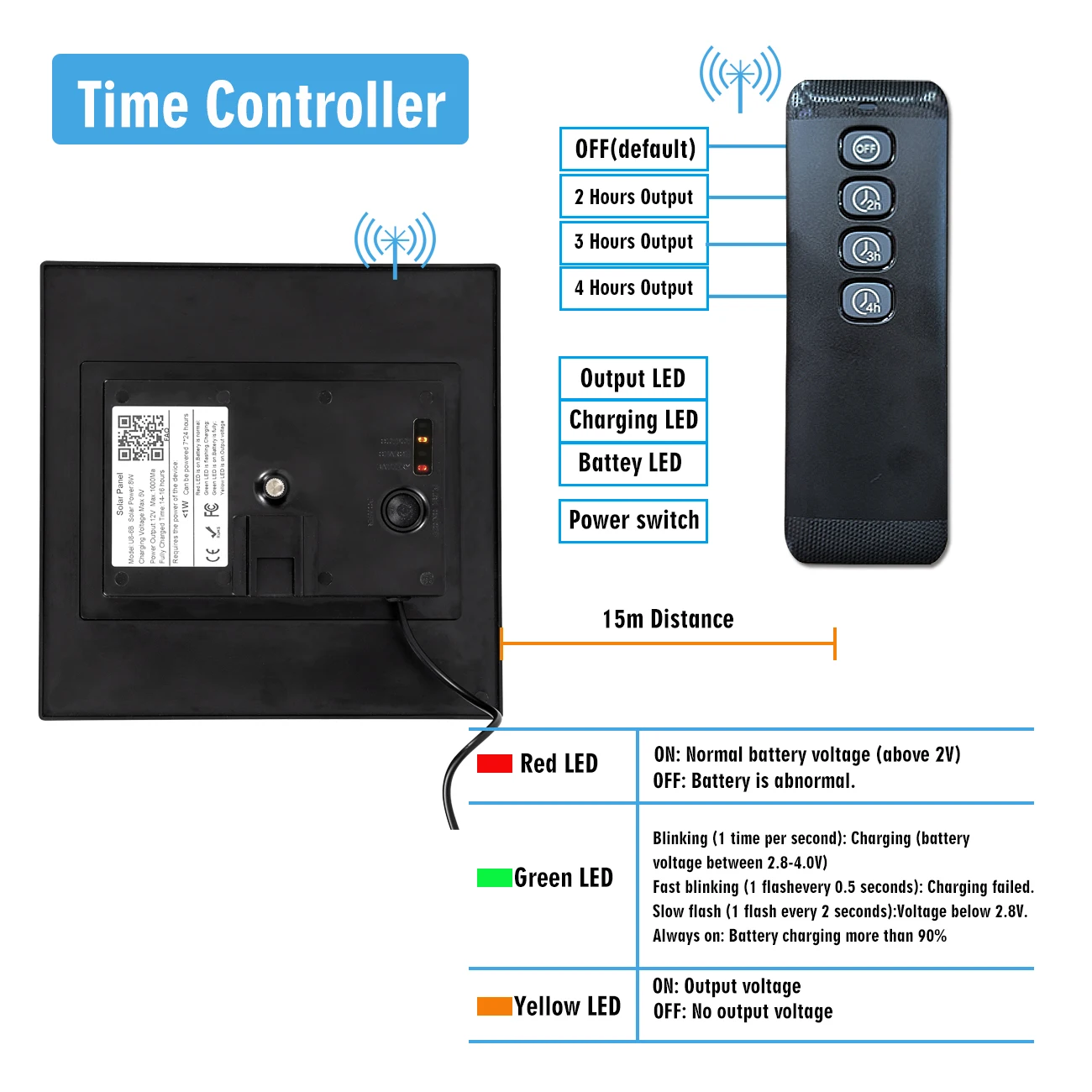

Charging Indicator
It is convenient and clear to judge the working status of the solar panel according to the color of the indicator light.
Product Parameters
Here are the key solar panel parameters.

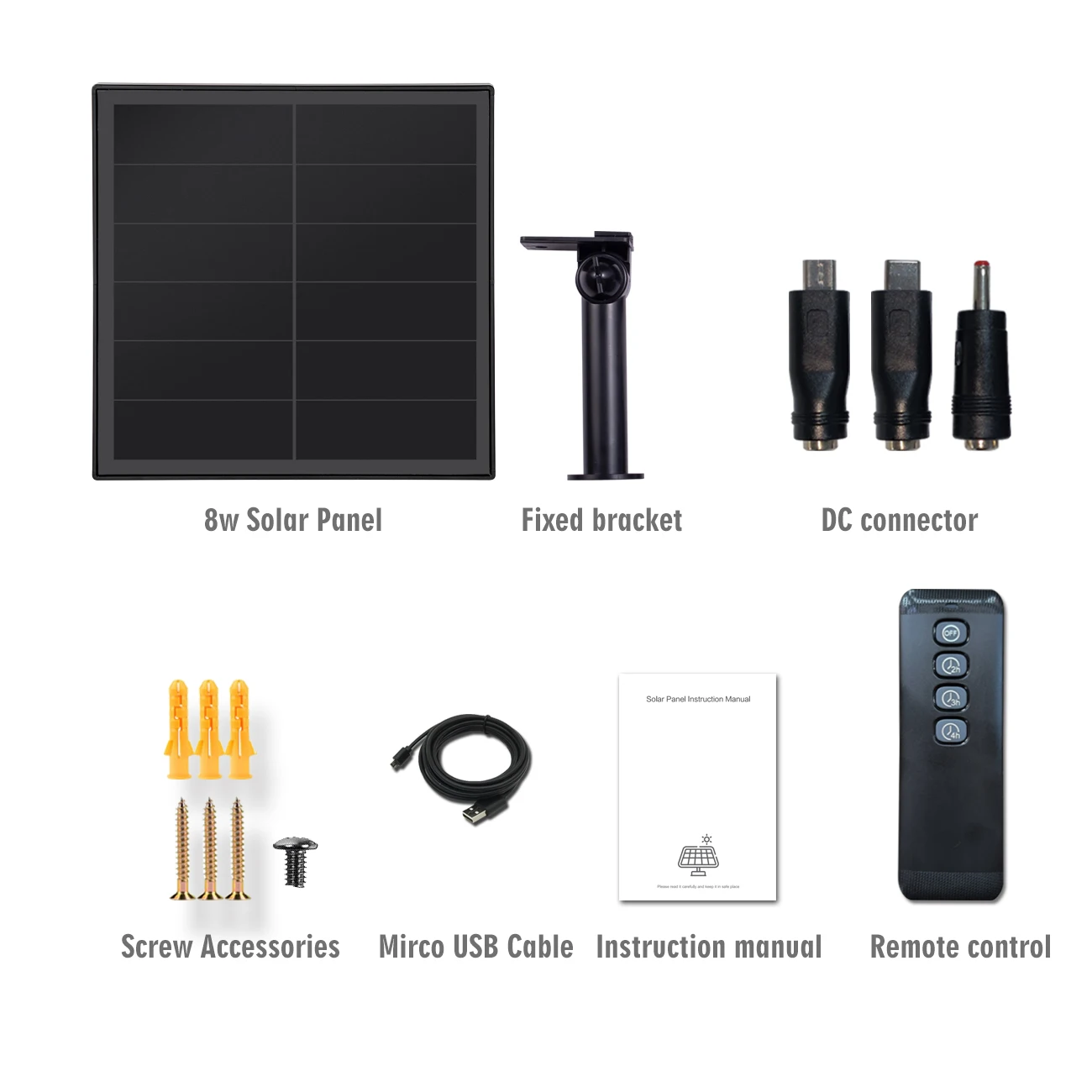

Packing List
Solar Panel 1PCS
Fixed bracket 1PCS
Screws 1PCS
Instruction manual 1PCS
Screw accessory package 1 package

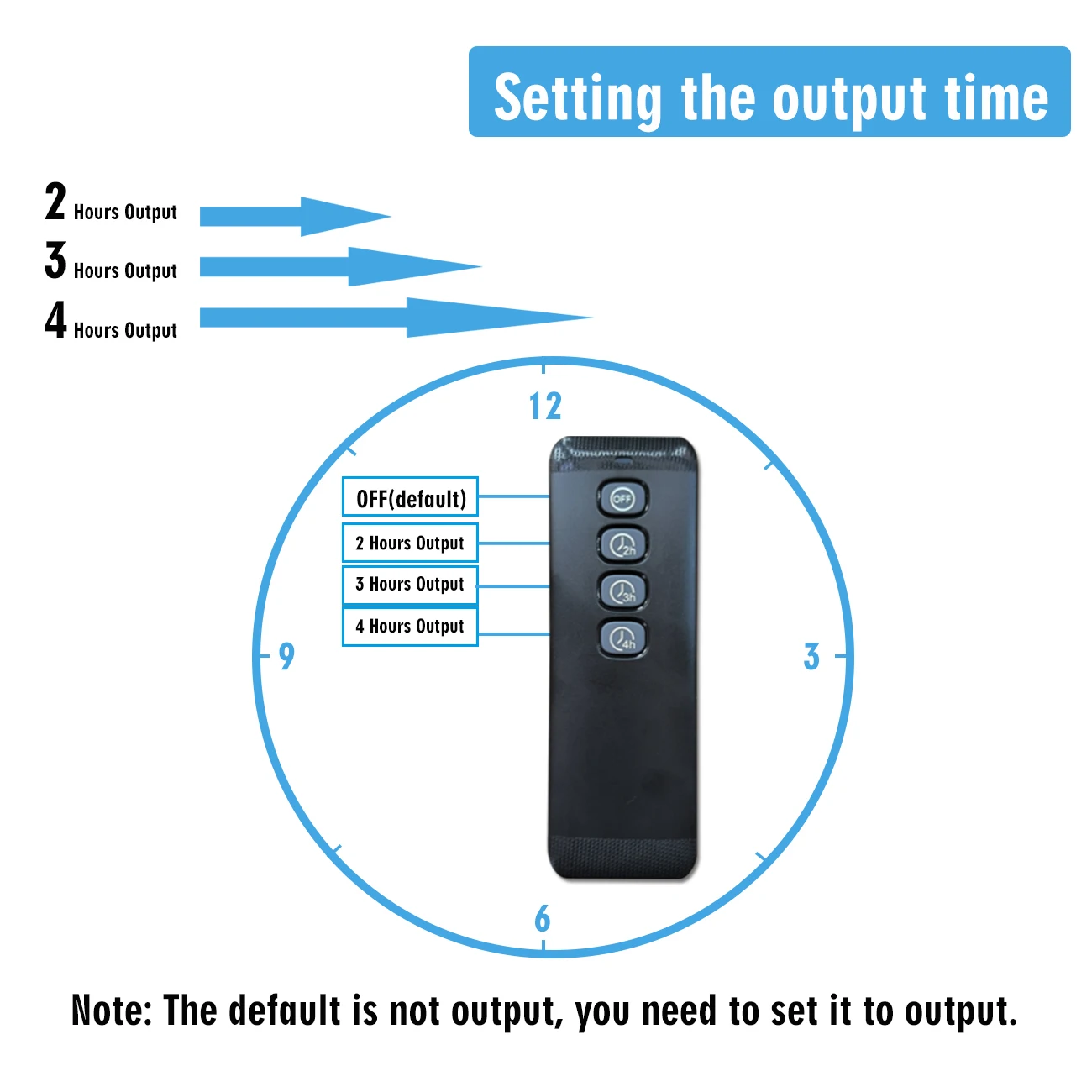

Timer remote control 1PCS
