- High-concerned chemical: None
- is_customized: Yes
- Output Current: MPPT 80A
- Model Number: POW-HVM1K-12V
- Size: 348X270X95mm
- Output Type: SINGLE
- Weight: 3.2kg
- Brand Name: PowMr
- Output Frequency: 50Hz/ 60Hz
- Is Smart Device: Yes
- Origin: Mainland China
- Certification: CE

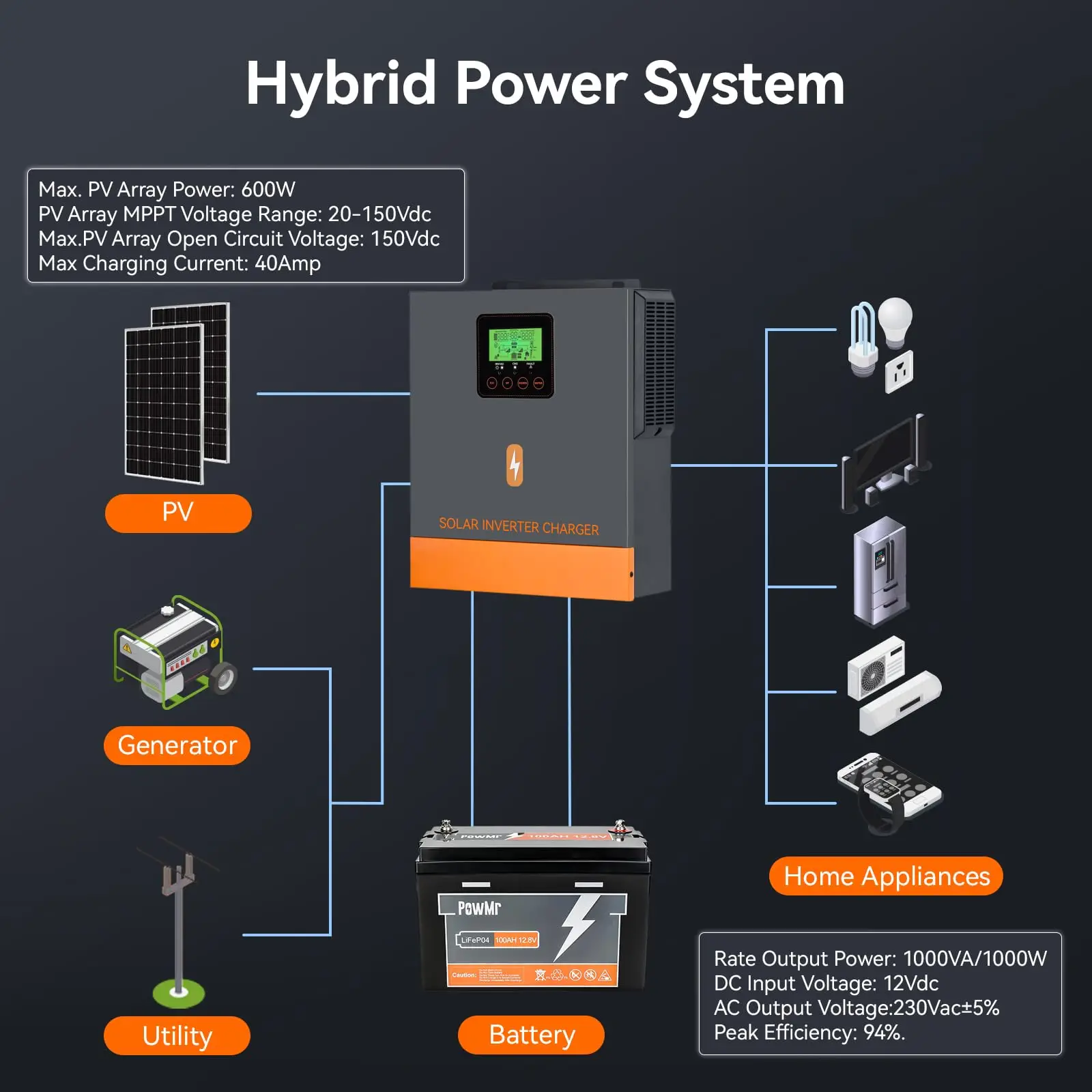

- System Configuration: Hybrid Solar Inverter
- Output Voltage Waveform: Pure Sine Wave
- Description: photovoltaic hybrid inverter
- Output Voltage: 230VAC±5%
- Battery Voltage: 12VDC
- PV Array MPPT Voltage Range: 20VDC-150VDC
- Application: Home solar system
- Feature: Build In MPPT Solar Charge Controller
- Product Type: MPPT Solar Inverter
- Battery Type 1: Lithium Batteries, Flooded Batteries, Gel Batteries, User Model
- Battery Type 2: Lead-acid Batteries, AGM Batteries
PowMr EU 1KW Hybrid Solar Inverters 12V 220V Pure Sine Wave With MPPT 80A Solar Charge Controller Low Panel Voltage 150V Input
Introduction:
This is a multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with portable size.Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Feature:
• Pure sine wave inverter
• Configurable input voltage range for home appliances and personal computers via LCD setting
• Configurable battery charging current based on applications via LCD setting

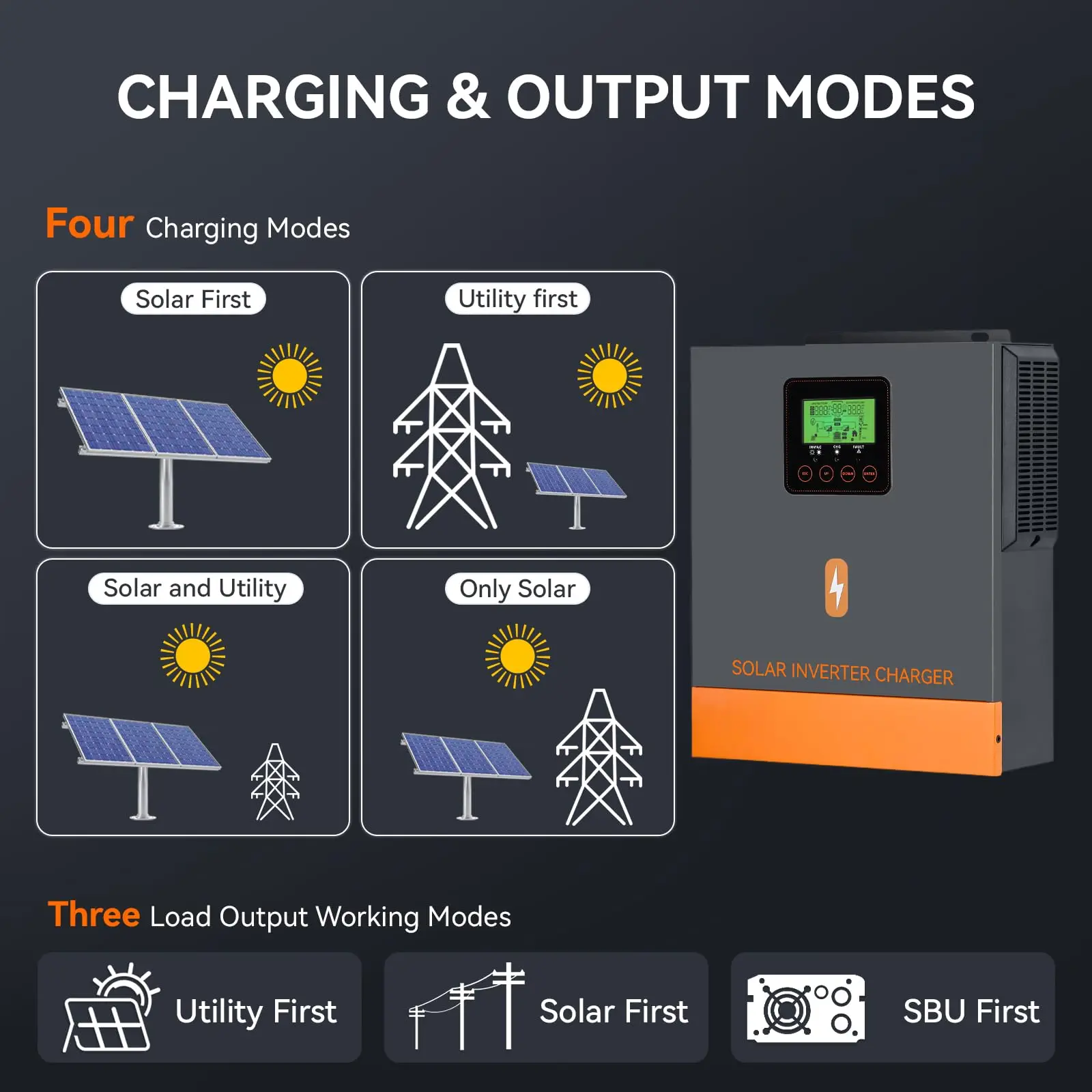

• Configurable AC/Solar Charger priority via LCD setting
• Compatible with mains voltage or generator power
• Auto restart while AC is recovering
• Overload/ Over temperature/ short circuit protection
• Smart battery charger design for optimized battery performance
• Cold start function
• WIFI/GPRS(Option)
• Can connect to lithium battery
Specification:
|
INVERTER MODEL |
POW-HVM1KW-12V |
|
|
Picture |
|
|
|
Rated Output Power |
1000VA/1000W |
|
|
Output Voltage Waveform |
Pure Sine Wave |
|
|
Output Voltage Regulation |
230Vac士5% |
|
|
Output Frequency |
50HZ |
|
|
Peak Efficiency |
94% |
|
|
Overload Protection |
3s@>150% load;5s@ 100%~150% load |
|
|
Surge Capacity |
2* rated power for 5 seconds |
|
|
Charging Algorithm |
3-Step |
|
|
AC Charging Current (Max) |
40Amp |
|
|
Max. PV Array Power |
600W |
|
|
PV Array MPPT Voltage Range |
20~150Vdc |
|
|
PV Array MPPT Voltage Range |
150Vdc |
|
|
Max solar charging current |
40Amp |
|
|
Max(AC+Solar)Charging current |
80Amp |
|
|
Safety Certification |
CE |
|
|
Operating Temperature Range |
-10°C to 50°C |
|
|
Storage temperature |
-15°C- 60°C |
|
|
Humidity |
5% to 95% Relative Humidity(Non-condensing) |
|
|

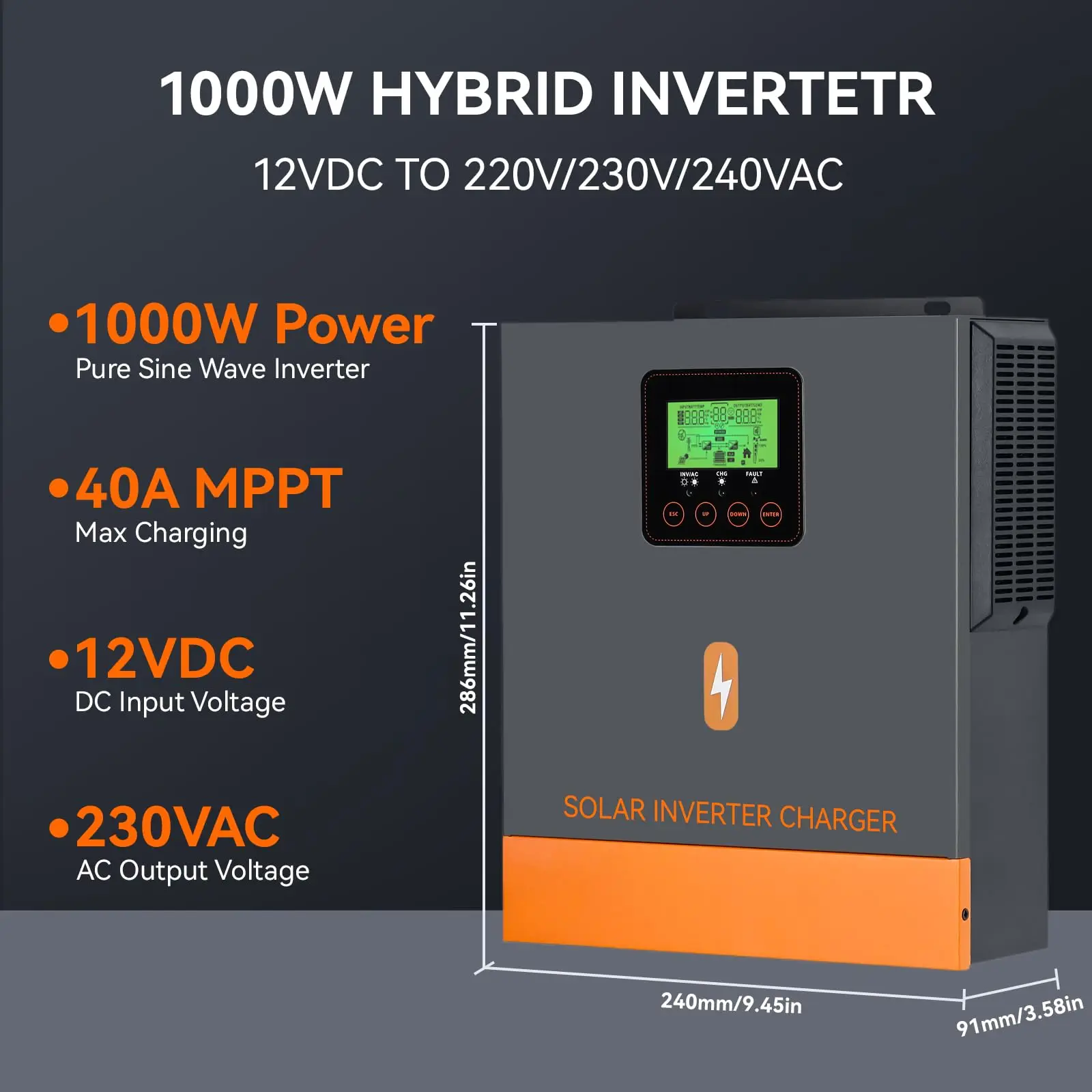

Dimension |
286X240X91mm |
|
|
Net Weight. |
3kg |
|

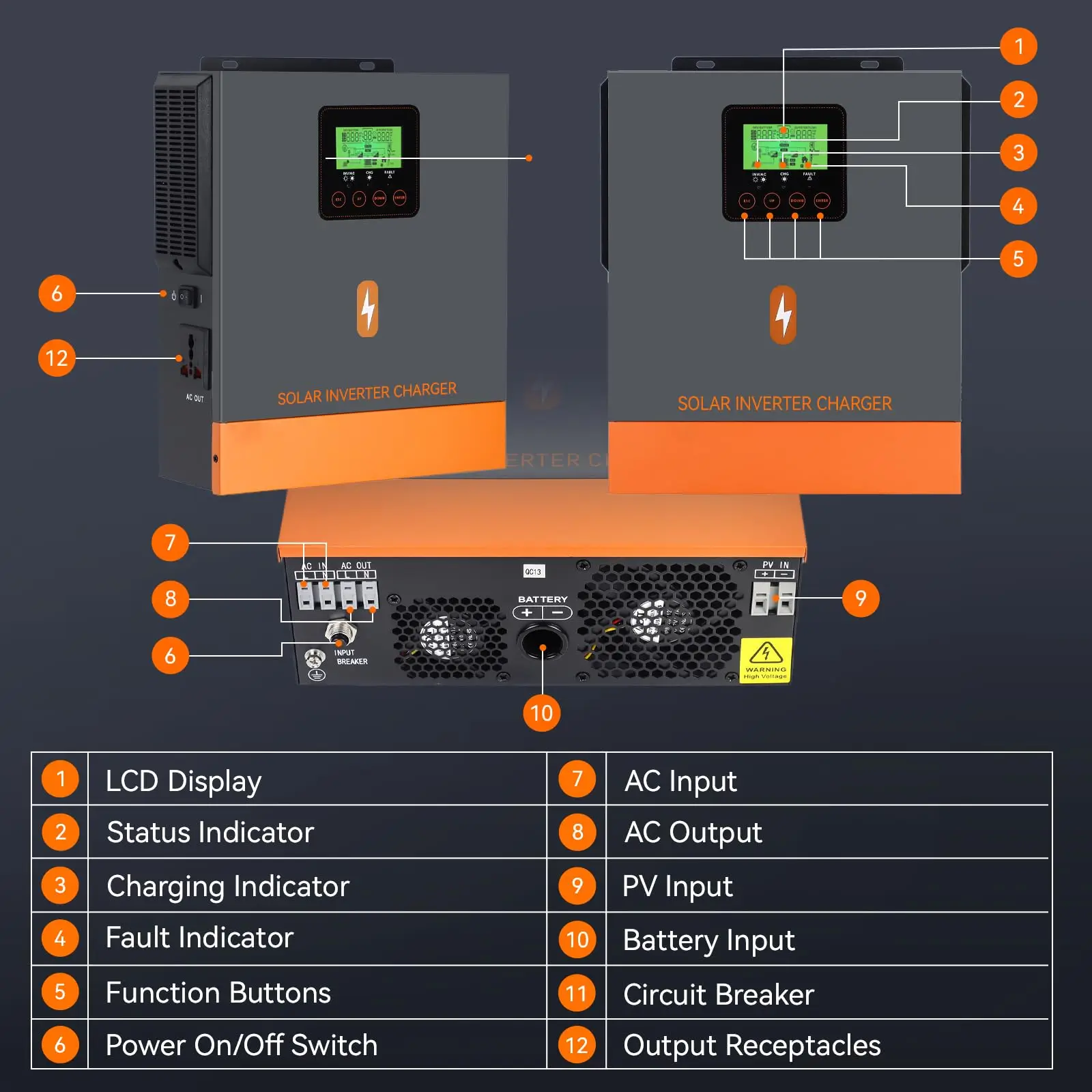

Product Overview:
