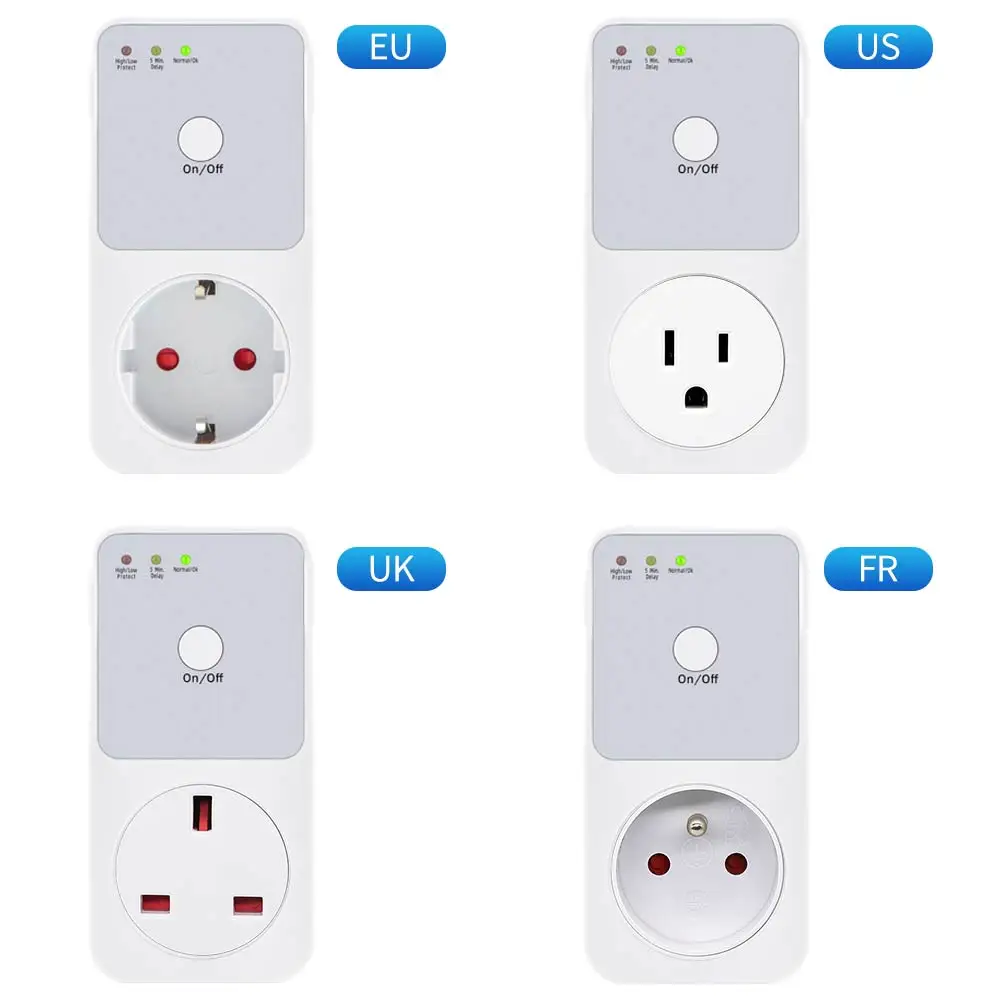

AC 220V Voltage Protector Smart Socket Over Voltage Current and Under Voltage Protective Device Protector Relay EU Plug Socket

SPECIFICATION：

ITEM NO.：HLP01

DELAY TIME：5~6 Minutes

POWER：3680W MAX

VOLTAGE PROTECT RANGE：170V~260V

Description：

1. Connecting the power, the yellow light is turn ON when the voltage is at 175 Vac ~ 260 Vac.  After delay around 5 minutes, or you can press the ON & OFF button directly, the green light is always ON, and the power starts to output voltage;

2. After the power supply is connected, when the voltage is lower than 175 Vac or higher than 260 Vac, it enters the voltage protection mode directly.  At this time, the red light is always ON, and the power supply is not output;

3. When the product is in the protection mode (the red light is ON), if the voltage higher than 190 Vac or the high voltage drops below than 240 Vac, the yellow light will be ON, and it will enter the normal working status after a delay of about 5 minutes;

4. The ON & OFF button works only when the voltage is in the normal working range; If in the voltage protection mode, the ON & OFF button will be no action;

5. When the product enters the normal status, if the voltage unstable, and it’s out of the normal voltage range, the product will enter the voltage protection mode directly and device is no power output.
