Note Before Order!

– Input Voltage: 100~250VAC, 50/60Hz；Output Voltage(Motor Voltage): 100~250VAC, 50/60Hz(Our switch can't work with DC motor!)
– Please check your motor is with 4 wires (Blue Wire, Brown wire, Black Wire, Green/Yellow Wire) before you buy our curtain switch module. And please be noted that neutral wire is a must for the installation, or you can't use our device.
– Our curtain switch module is compatible with toggle switch(rocker switch, back and forth switch, 3 stable status switch) and button switch(spring switch), but if your wall switch is button switch or spring switch, the wall switch needs to be pressed all the time to give a continuous signal to run the motor. Please don't buy our curtain switch module if you mind this operation manner change.

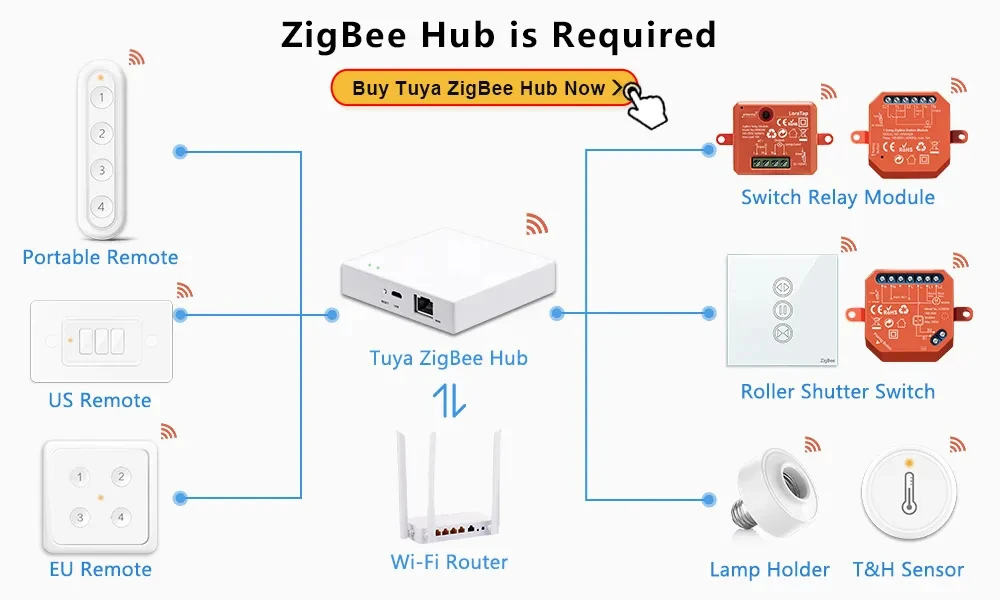

ZigBee Hub is Required

– Tuya ZigBee 3.0 curtain switches need work with Tuya ZigBee Hub, please make sure you already have a Tuya ZigBee Hub, if not, you can click the link in the picture below to buy the zigbee hub.

– This ZigBee curtain switch can't work with other brands' ZigBee Hub, please make sure your ZigBee Hub is from Tuya.

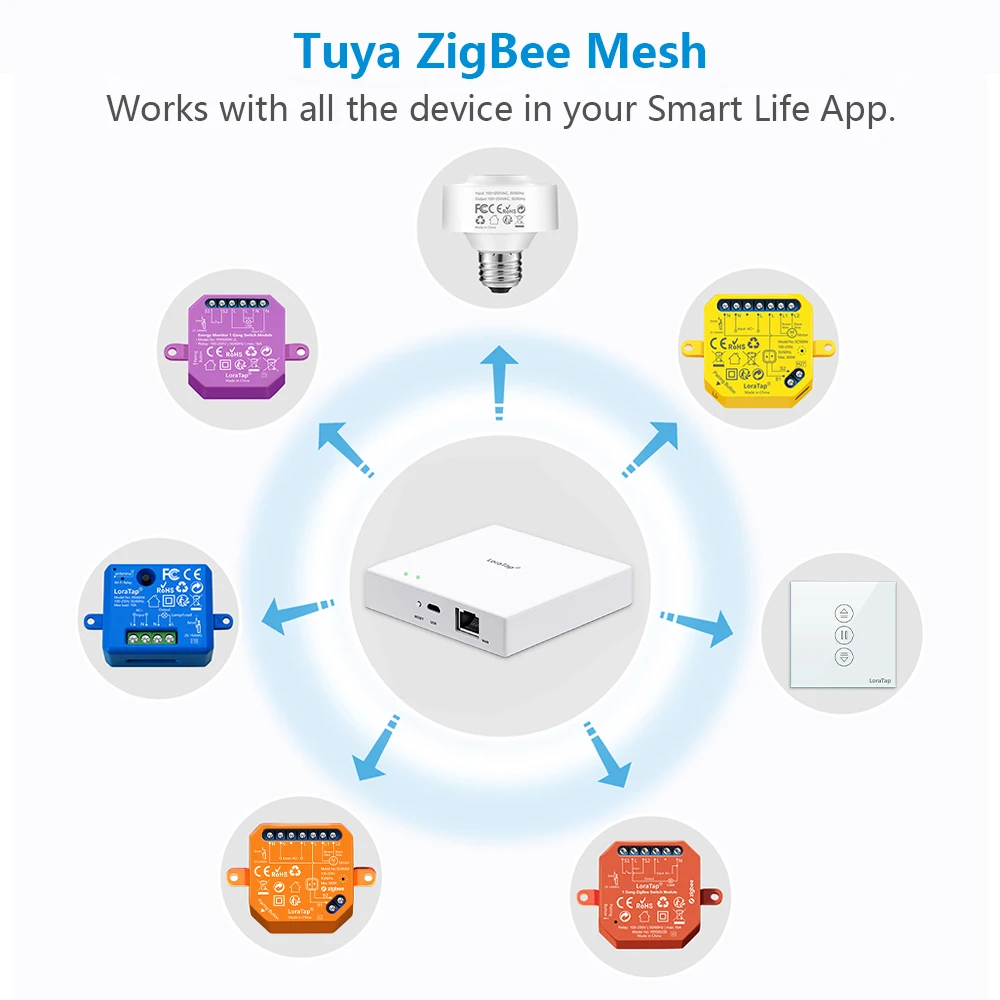

Tuya ZigBee Mesh Curtain Module

– You can add up to 256pcs Sub ZigBee devices in Tuya ZigBee Mesh Network.
– Please make sure you already have a Tuya ZigBee Hub, it's a must for all the Tuya/Smart Life ZigBee devices.

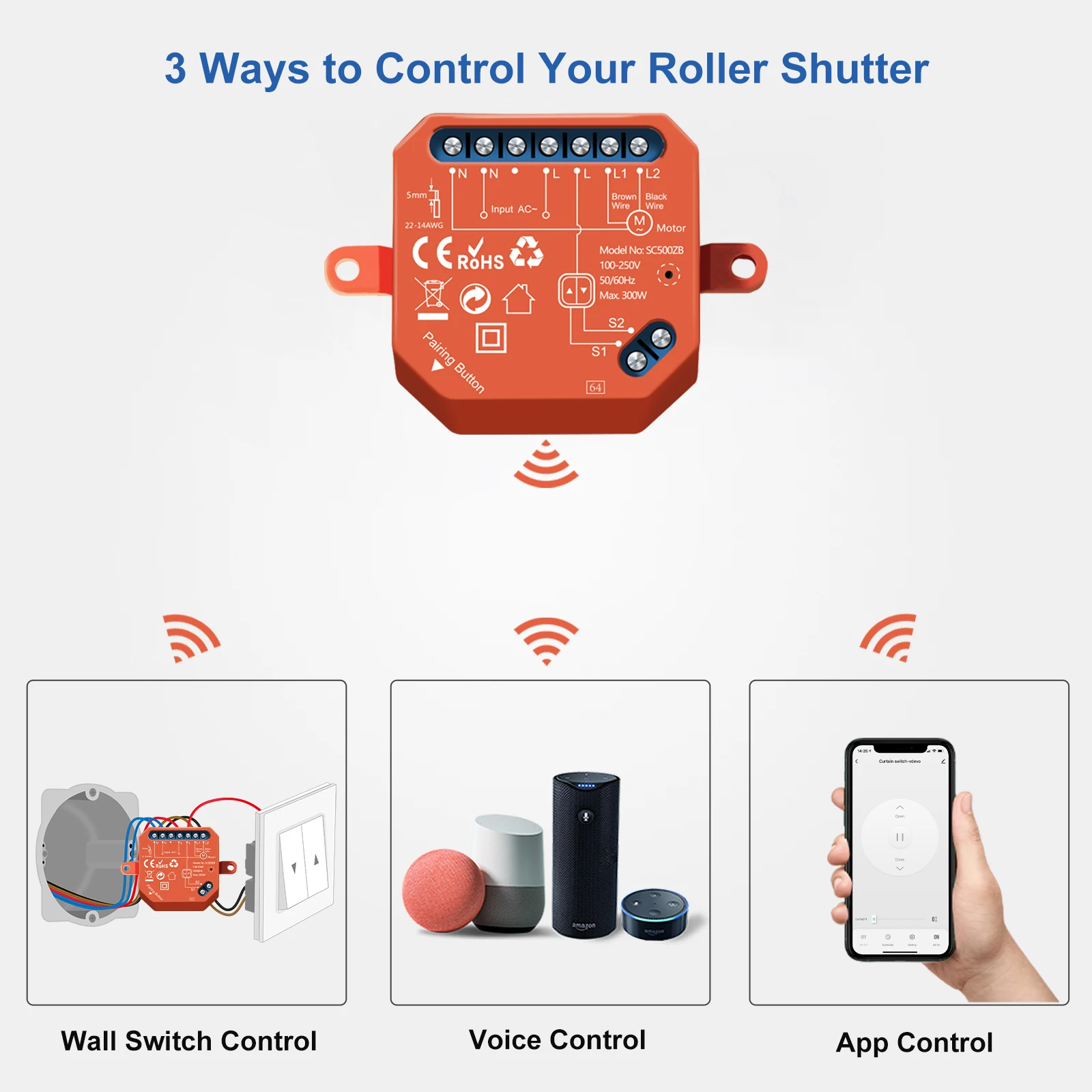

3 Ways to Control Your Roller Shutter

– 1. After installing this module, you can use the wall switch to open or close the curtains.
– 2. Voice Control with Google Home, Amazon Alexa.
– 3. Mobile app remote control to open or close curtains.

Voice Control

Voice Control with Google Home, Amazon Alexa

Remote control with your mobile anywhere even you are not at home

Percentage Function

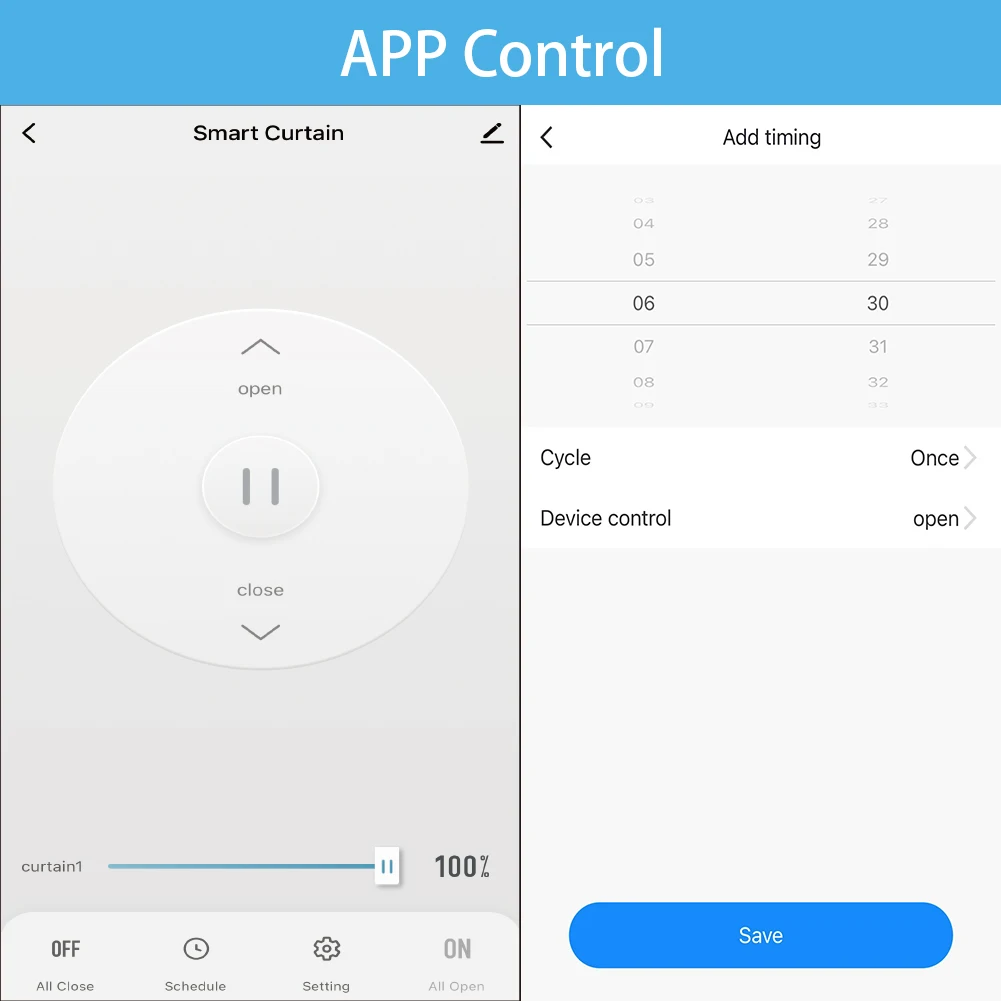

You can control the opening and closing percentage of the curtains on the smart life app.

Set Timer Schedule for your curtain

– Timed opening and closing curtains
– Open and close the curtains regularly according to your work and rest habits
– Open the curtains at the appointed time in the morning to start a beautiful day.

View status and remote control anytime, anywhere

Whether at home or away, you can use the App to check the status of the curtains at home and easily control the opening and closing remotely

Group Function and Device Sharing

You can create group in the APP to manage all the blinds in your house and share the device to all your family members.

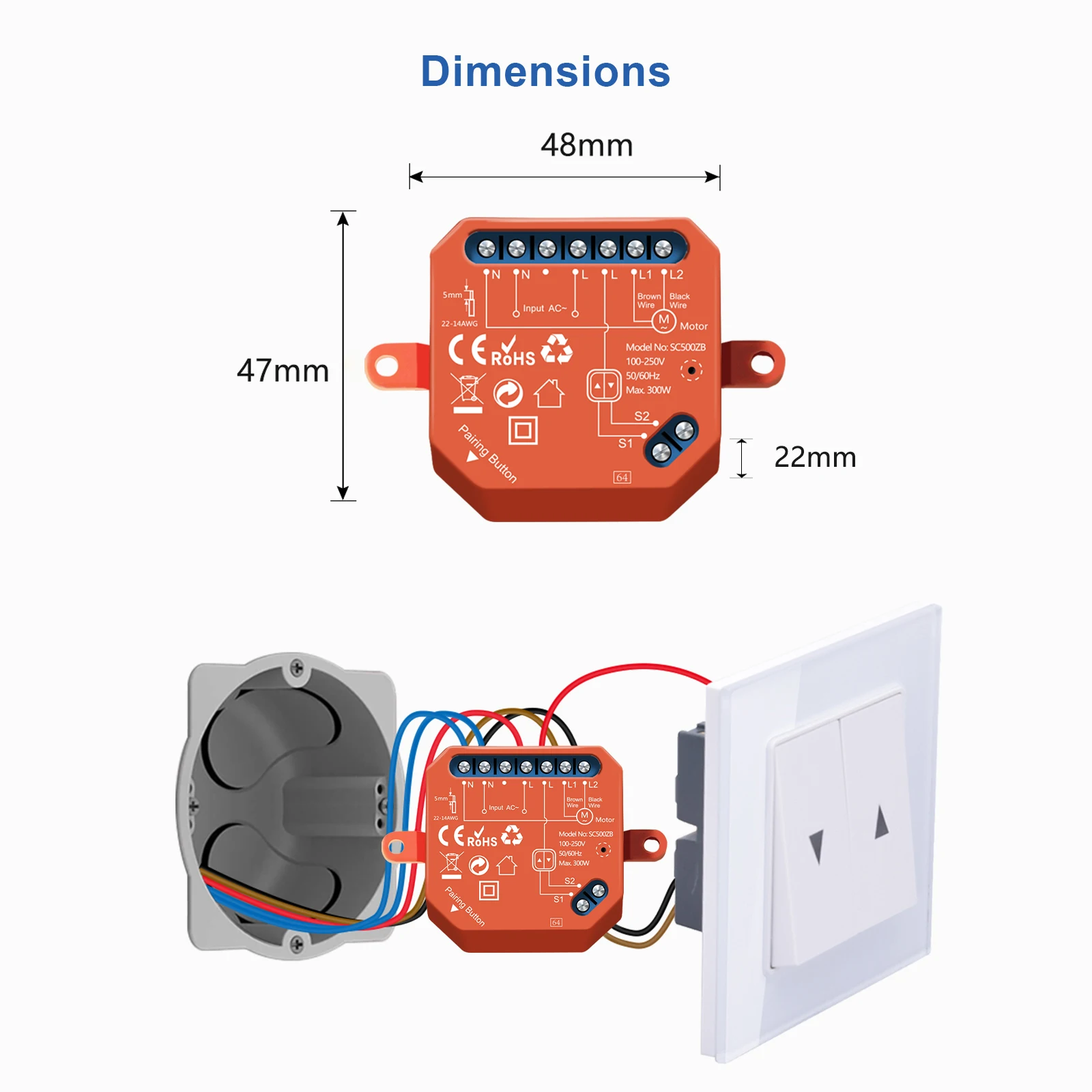

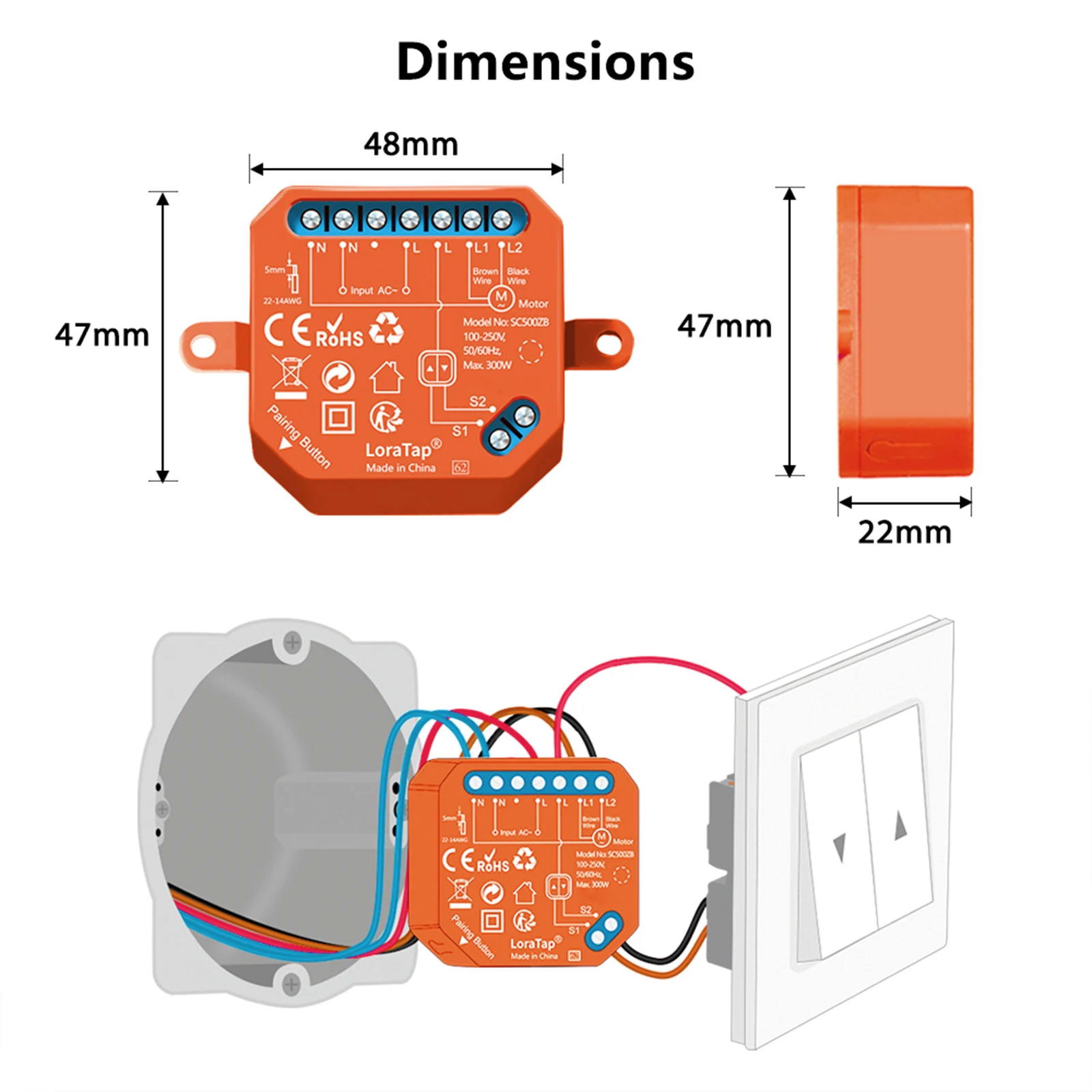

Dimensions

Module size: 48mm*47mm*22mm
Tiny size design enable it can fit most junction box.

Wiring method

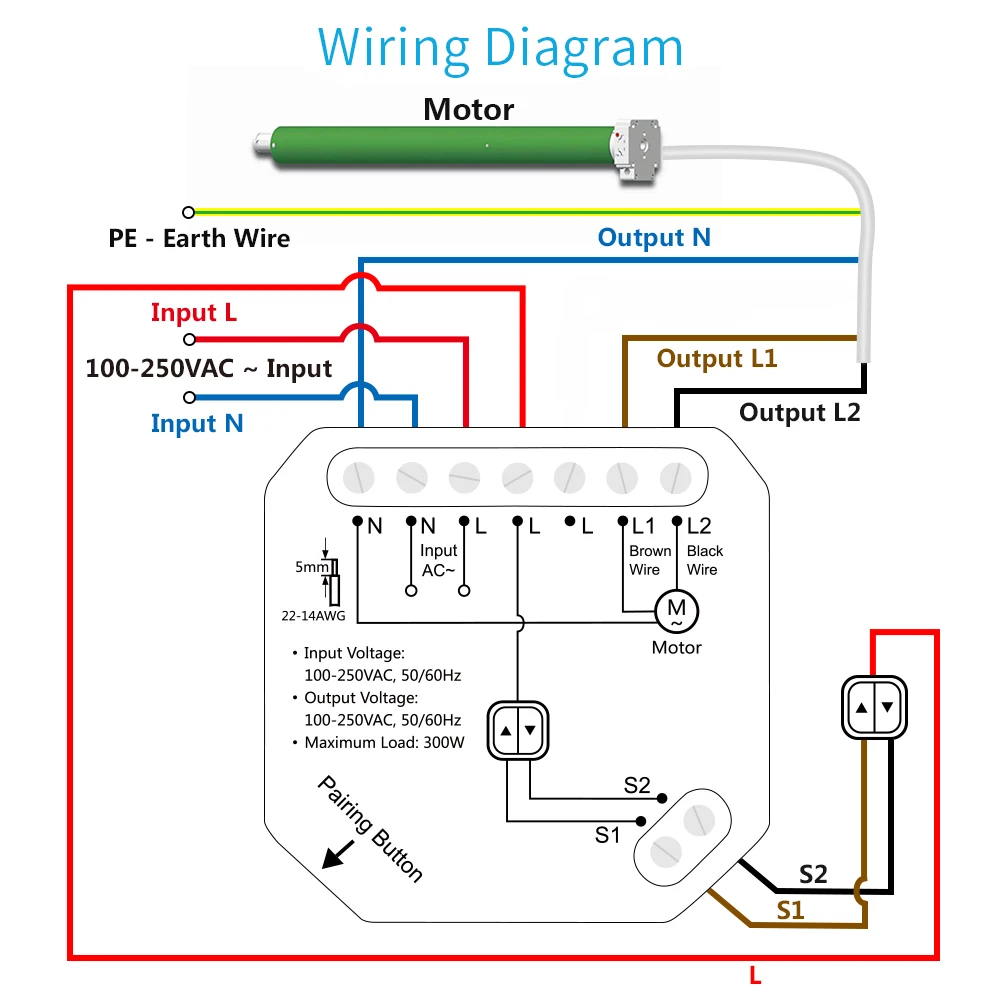

– If you need to connect with your manual switch, please refer to below wiring diagram .
– If you need any help for how to connect the module, please be free to contact with seller.

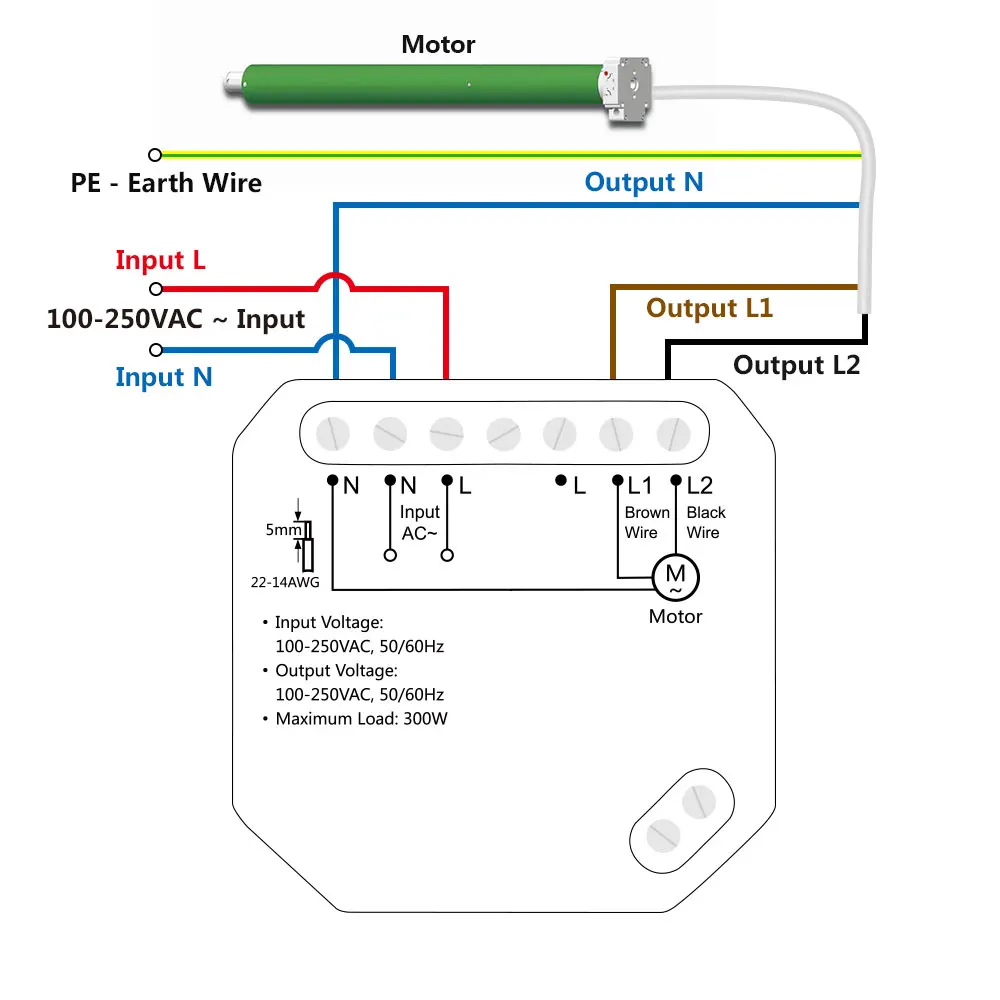

– If you don't need to connect with your manual switch, please refer to below wiring diagram .

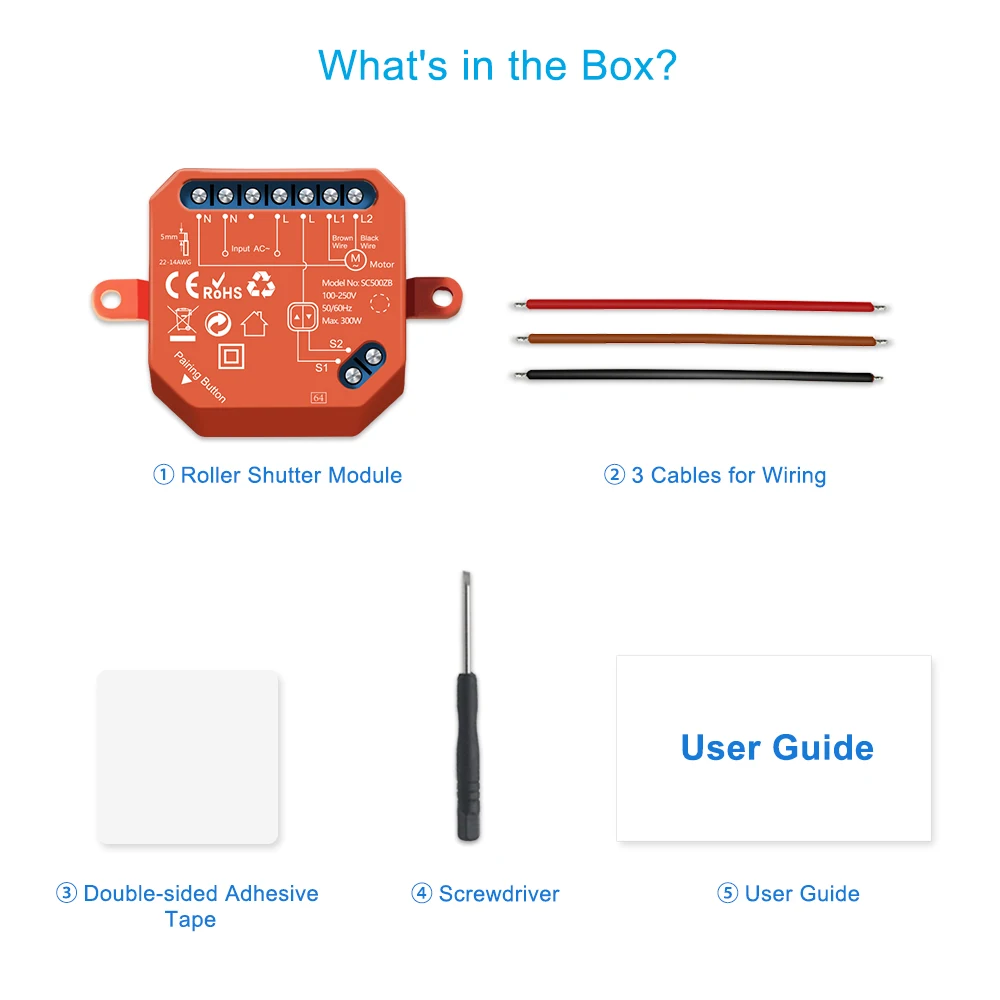

What's in the box?

1 * ZigBee 3.0 Curtain Switch Module
3 * Cable for Wiring
1 * Double-Sided Tape
1 * Screwdriver
1 * English User Guide
